Product Details
＋

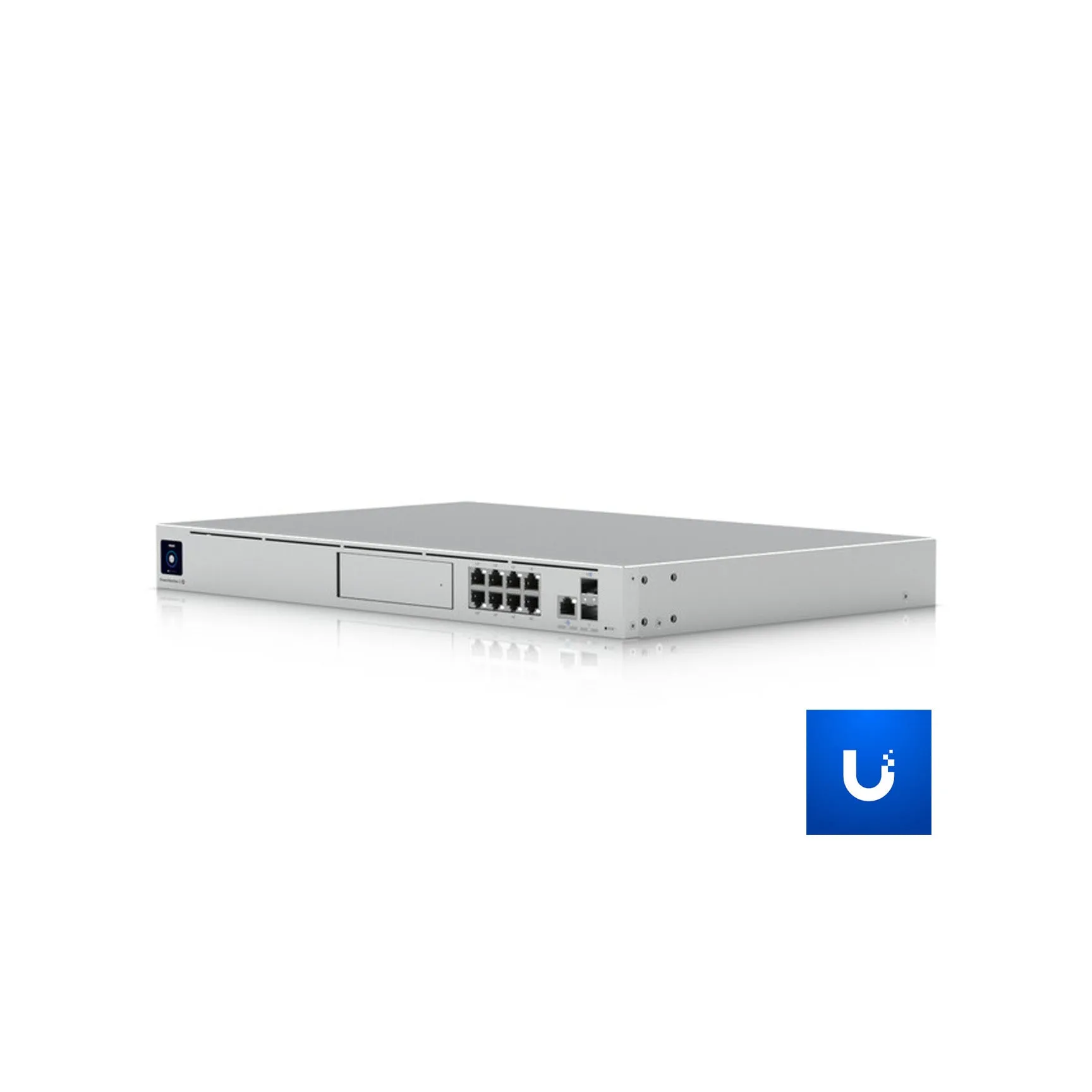

Ubiquiti Dream Machine Special Edition UDM-SE Router
9 Ports - 8 RJ-45 Port(s) - 1 WAN Port(s) - PoE Ports - Management Port - 2 SFP Slots - 4 GB - 10 Gigabit Ethernet - Rack-mountable
Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.
- Includes full UniFi application suite for device management
- 3.5 Gbps routing
- Integrated 8-port PoE/PoE switch
- (1) 10G SFP , (8) GbE RJ45 LAN ports including (2) PoE , and (6) PoE
- (1) 10G SFP , (1) 2.5 GbE RJ45 WAN ports
- 1.3" touchscreen
- 128 GB SSD & 3.5" HDD bay
Total Number of Ports:
9
Management Port:
Yes
Number of Network (RJ-45) Ports:
8
Number of WAN Ports:
1
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 2.5GBase-T
- 1000Base-T
Standard Memory:
4 GB
PoE (RJ-45) Port:
Yes
Power Consumption:
50 W
Power Source:
AC/DC
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
11.2"
Weight (Approximate):
10.91 lb
Additional Information:
Mechanical
- Enclosure materials : Aluminium CNC, SGCC steel
- Mount material : SGCC steel
Hardware
- Processor : Quad-core ARM® Cortex®-A57 at 1.7 GHz
- System memory : 4 GB DDR4
- On-board storage : 16 GB eMMC Integrated 128 GB SSD
- Management interface :
- Ethernet
- Bluetooth
- Networking interface :
- (8) LAN: GbE RJ45 ports
- (1) WAN: 2.5 GbE RJ45 port
- SFP interface :
- (1) LAN: 10G SFP
- (1) WAN: 10G SFP
- PoE interface :
- (6) PoE (Pair A 1, 2 ; 3, 6-)
- (2) PoE (Pair A 1, 2 ; 3, 6-)
- IDS/IPS throughput : 3.5 Gbps* : *Measured with iPerf3
- Power method :
- (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
- (1) USP-RPS DC input, 52V DC, 3.94A
- Power supply : AC/DC, internal, 240W
- Supported voltage range : 100-240V AC
- Max. power consumption : 50W (Excluding PoE output)
- Max. PoE wattage per port by PSE :
- PoE: 15.4W
- PoE : 30W
- Voltage range PoE mode :
- PoE: 44-57V
- PoE : 50-57V
- ESD/EMP protection : Air: ± 15kV, contact: ± 8kV
- LCM display : (1) 1.3" touchscreen
- Button : Factory reset
- Operating temperature : -10 to 40° C (14 to 104° F)
- Operating humidity : 5 to 95% noncondensing
- Certifications : CE, FCC, IC
