Product Details
＋
DS1008X

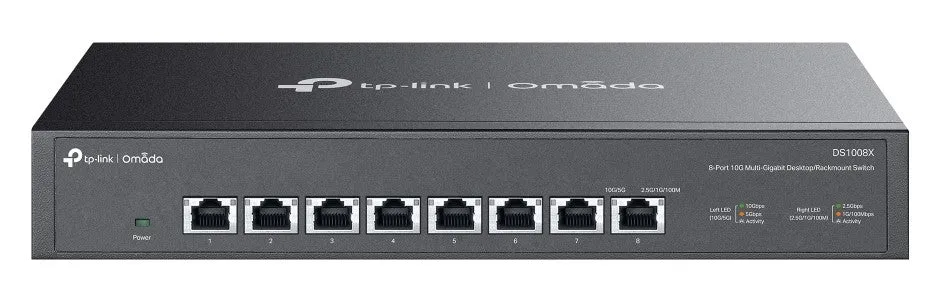

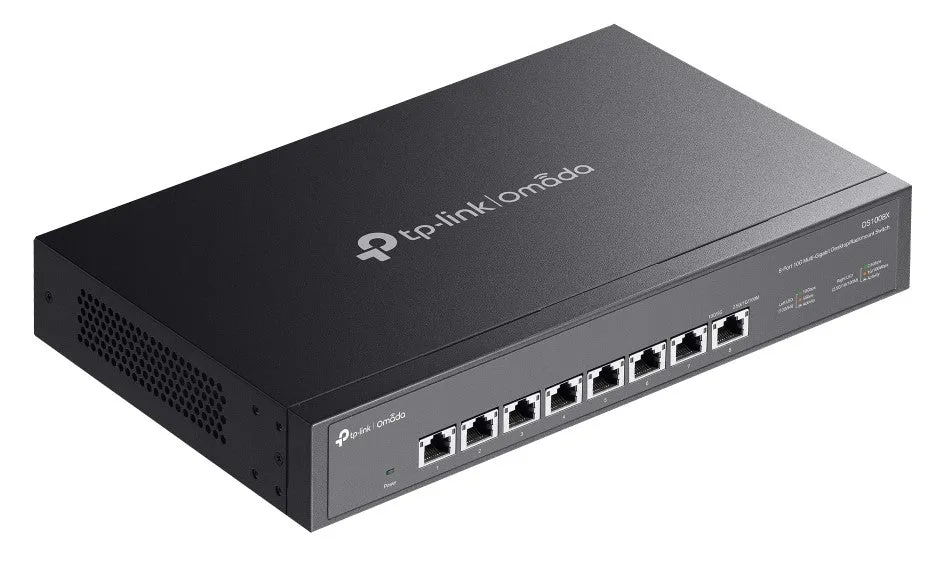

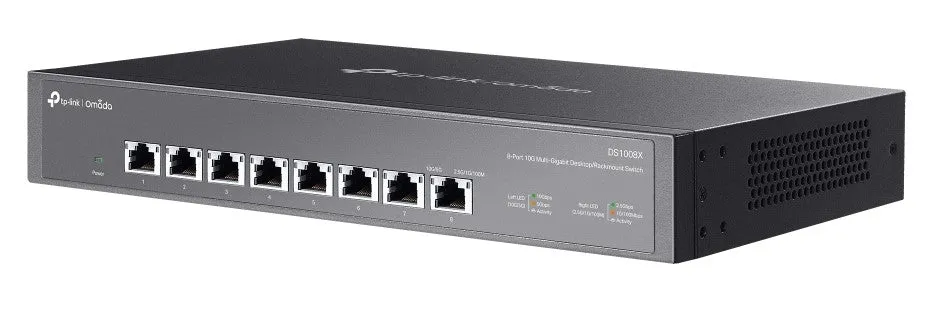

Omada 8-Port 10G Unmanaged Desktop/Rackmount Switch
- Eight 10 Gbps ports . Eight 10 Gigabit ports unlock 10G/Multi-Gig bandwidth and maximize device performance, providing switching capacity up to 160 Gbps.
- Lightning fast connection . Provides lightning-fast connections to 10G NAS, servers, 10G PCIe adapters/NICs, gaming PCs, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Suitable for various scenarios . Designed for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
- Best 5 speed cable . 5-speed (100Mbps/1G/2.5G/5G/10G) connection auto-negotiation provides the best performance.
- Plug and play . No configuration or centralized management is required.
| HARDWARE SPECIFICATIONS | |
|---|---|
| standards and protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Connection interface |
• 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports • Auto-Negotiation • Auto-MDI/MDIX |
| Number of fans | 1 |

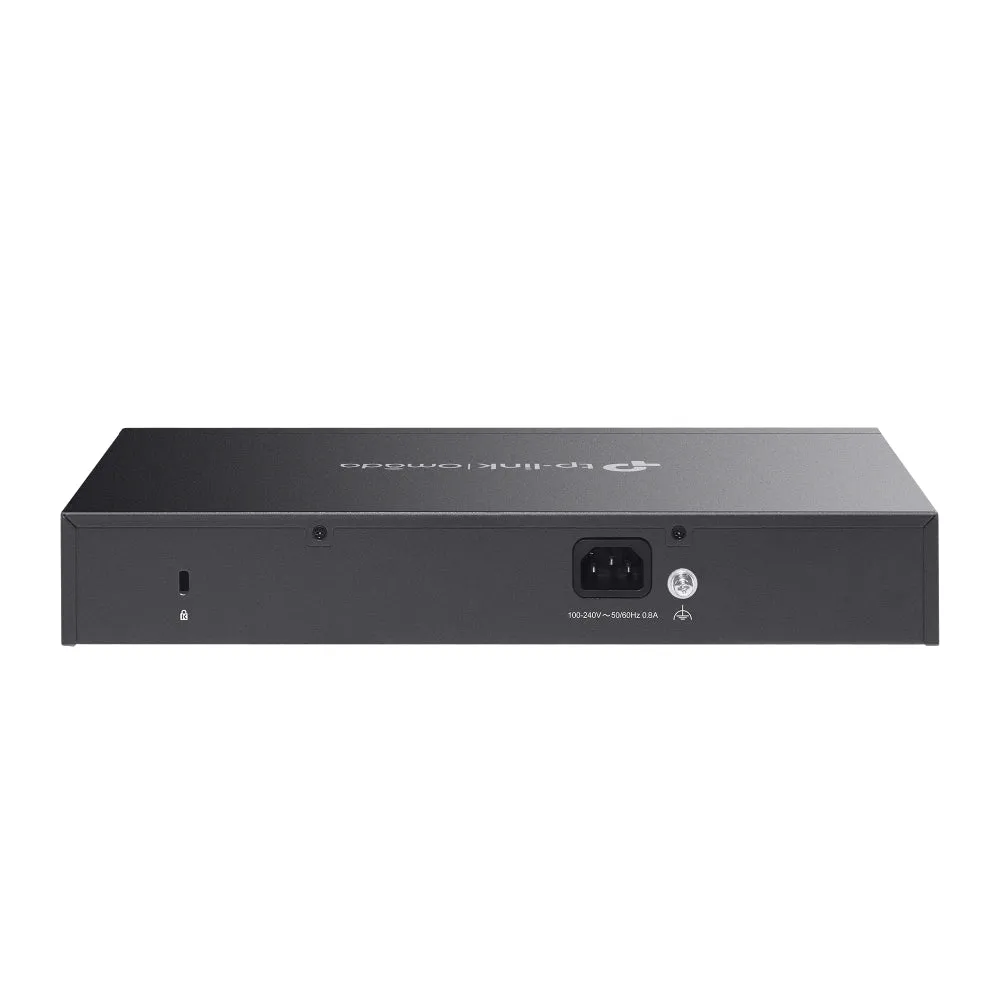

| External power supply | 100–240 VAC, 50/60 Hz, 0.8A |
| LED indicator light |
• System Power: 1 • Link/Act Indicators: 2 indicator per port built into each RJ45 port |
| Dimensions (length x width x height) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Maximum power consumption | 31.2 W |
| PRODUCT PERFORMANCE | |
|---|---|
| Backplane bandwidth | 160 Gbps |
| Packet forwarding rate | 119.0 Mpps |
| MAC address table | 16K |
| packet buffer memory | 12Mbit |
| jumbo frame | 12 KB |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Advanced functions |
• 802.3X Flow Control • 802.1p/DSCP QoS |
| Transmission mode | Store and Forward |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE, FCC,RoHS |
| Package Contents |
• DS1008X • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| environment |
• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
