DT02-V Series
Toshiba’s Surveillance HDD DT02-V Series are designed for purpose-built consumer and commercial surveillance video systems supporting up to 32 cameras. The versatile capacity allows solutions designers to customize the storage capacity that best aligns with image resolution and data retention period requirements. DT02-V series use an energy-saving 5400rpm design to deliver performance tuned for demanding 24/7, multi-stream surveillance environments. DT02-V series are designed to be compatible with the wide variety of surveillance platforms available from leading SVR and NVR vendors.
Key Features
Reliability and Dependability
Annual workload rating of 180TB/year and designed for 24/7 operation.
Advanced HDD Technology
Drive-Managed SMR (Shingled magnetic recording) Technology.
Performance
Supports up to 32 cameras high-definition streams.

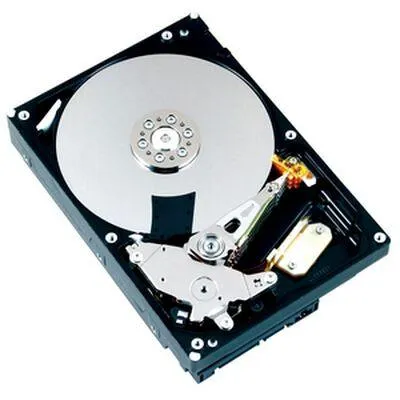

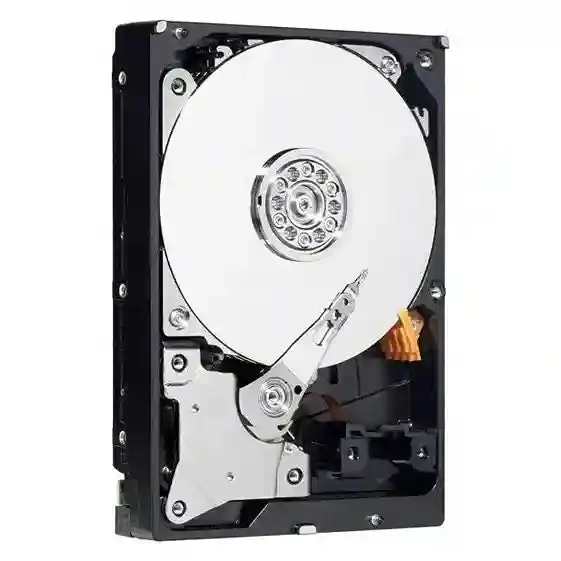

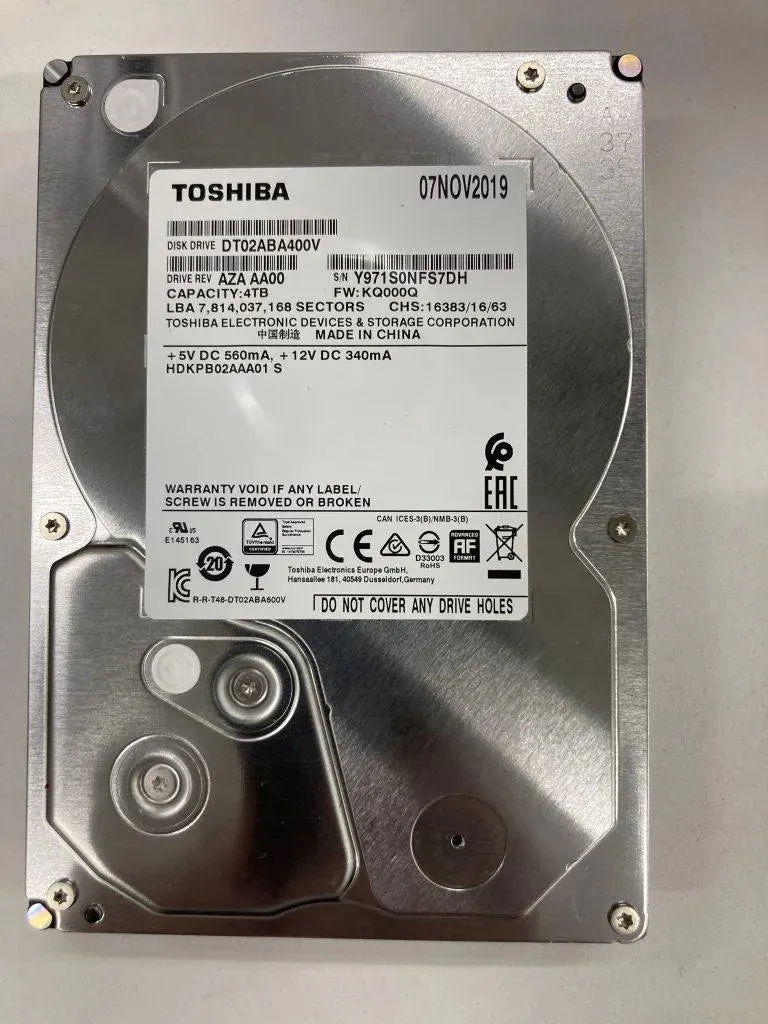

Toshiba DT02-V Series Hard Disk Drive
Specifications
| Form Factor | 3.5-inch |
|---|---|
| Interface | SATA 6 Gbit/s |
| Buffer Size | 128 MiB |
| Rotation Speed | 5400 rpm |
| Maximum Sustained Data Rate (Typ.) | 176.4 MiB/s |
| MTTF/AFR | 1,000,000 h / 0.88% |
Features
- Supports up to 32 cameras high-definition streams
- 128 MiB Cache buffer
- Designed for 24x7 operation
- Annual workload rating of 180TB/year
- MTTF of 1M hours
- Industry-standard 3.5-inch form-factor and SATA interface
- Advanced Format 512e Sector Technology
- Drive-Managed SMR (Shingled magnetic recording) Technology
Applications
- Surveillance Video Recorder (SVR)
- Network Video Recorders (NVR)
- Entry- and Mid-Range Surveillance NVR (SNVR)
- Super Digital Video Recorder (SDVR)
- Hybrid (analog and IP) SDVR platforms
