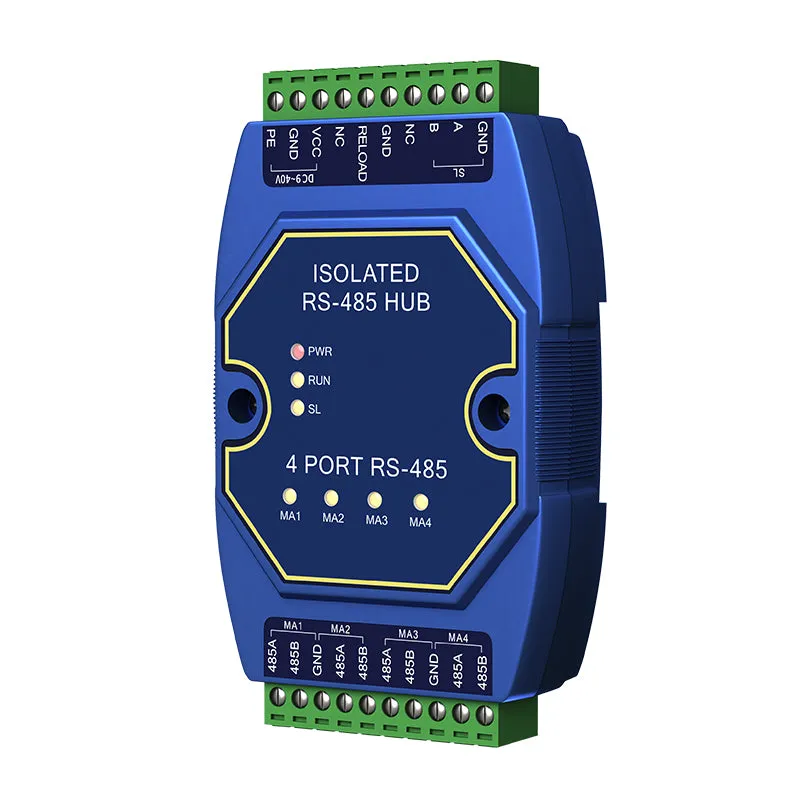

E810-R41 Industrial grade isolated RS485 hub photoelectric isolation, 4-way to 1-way RS-485

[Data interface]:RS485

[Working voltage]: DC 9~40V

[Protection level]:Industrial EMC level 3

[Product size]:120*72*34mm

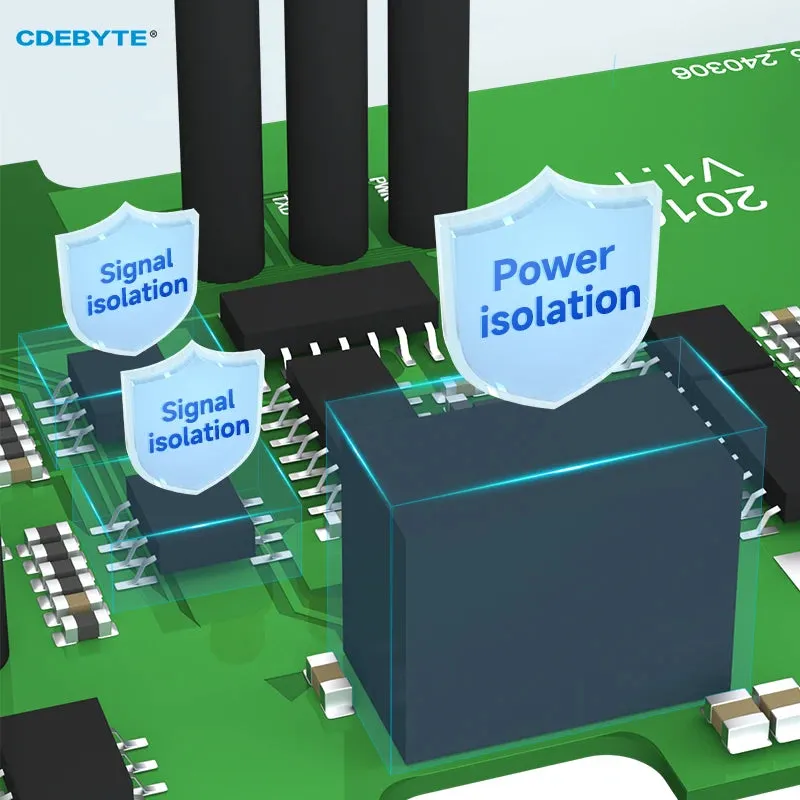

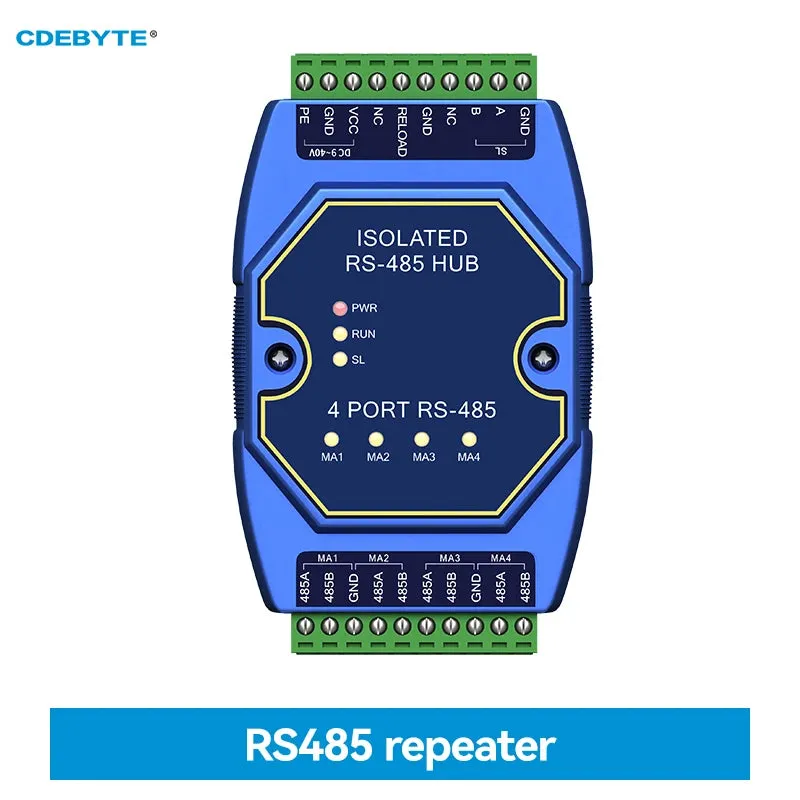

[Introduction]:E810-R41 is a 4-channel RS-485 to 1-channel RS-485 buffered isolation repeater launched by Ebyte. It uses photoelectric isolation technology to protect the master and slave stack devices from interference. The circuit is designed using EMC level 3 standards, which can effectively isolate the damage caused by lightning strikes and static electricity to the equipment. No configuration is required, and transparent data transmission between the master and slave interfaces.

Parameter name Parameter value Description
Common parameters Data interface RS-485 interface
baud rate 1200~115200bps
data bits 8 bits
Stop bit 1/2 digit
Check digit None/Odd/Even
storage space Single channel host 3k Byte
Working voltage DC 9~40V
Protection level Industrial EMC Level 3
Isolation voltage 1.5KV

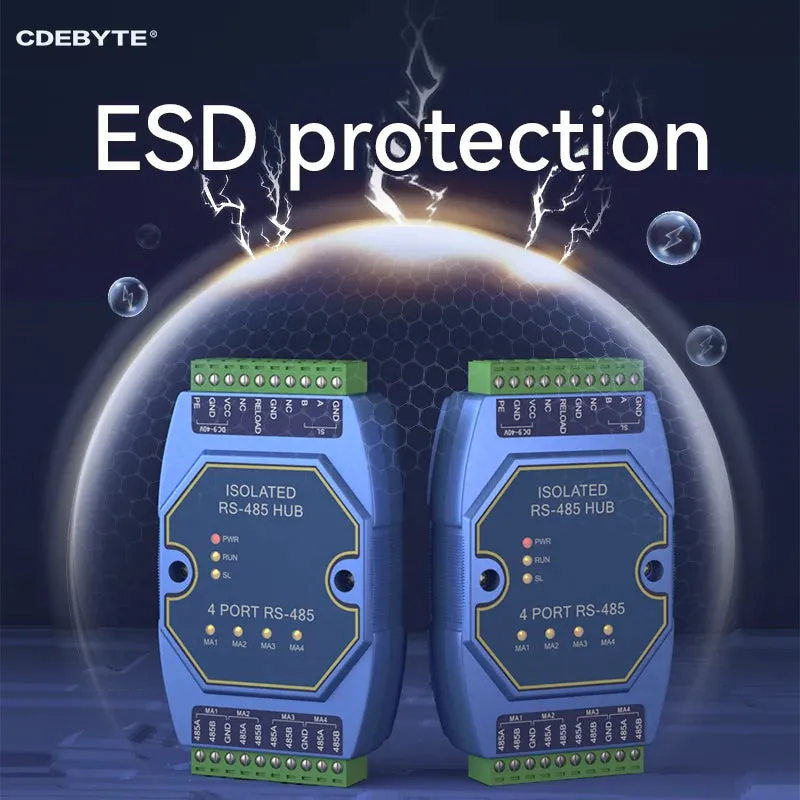

Electrostatic protection level Contact 4KV, air 8KV
pulse wave surge Differential mode 1KV, common mode 2KV
Working temperature and humidity -40~85℃, 5%~95% (no condensation)
Storage temperature and humidity -40~105℃, 5%~95% (no condensation)
Ground terminal support
difference parameter Expansion channels 2-way RS-485 host

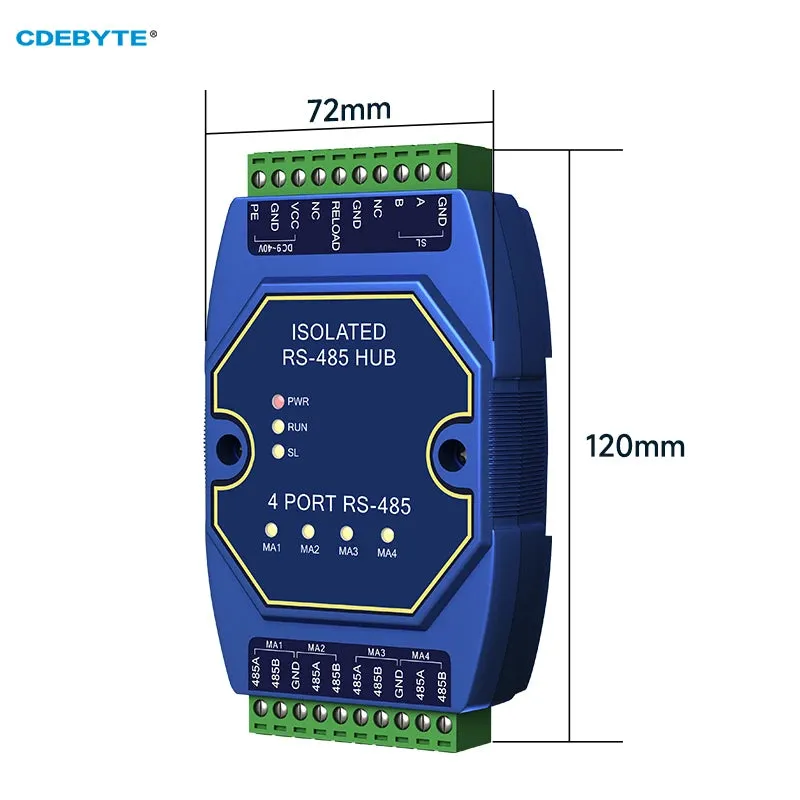

Product size 120×72×34mm
Product weight 120±5g
Interface standards 5.08mm plug-in terminal


    EBYTE E810-R41 RS485 Hub Industrial Grade 4-way RS485 to 1-way RS485 DC 9~40V Optical Isolation Cached RS485 Isolated Hubs
