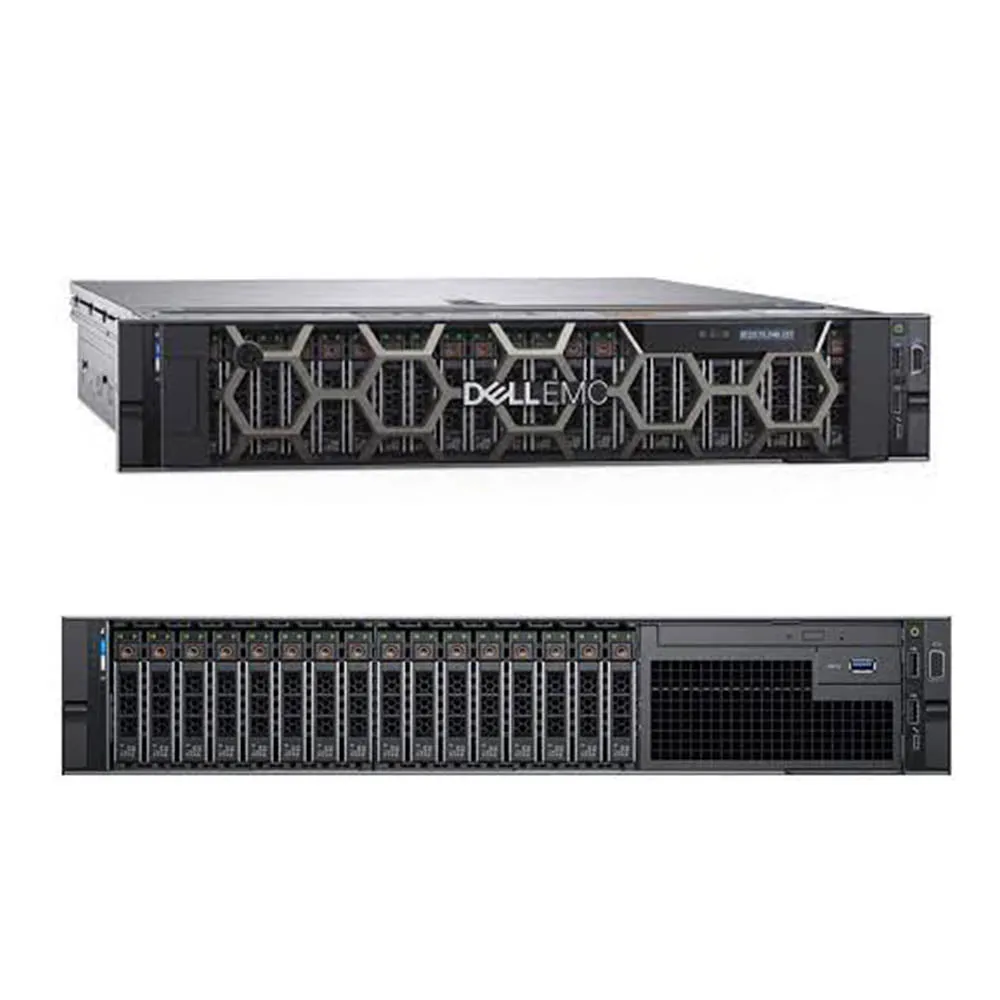

PowerEdge R750xs Rack Server
Performance and flexibility. Designed for dense data center computing, medium VM density or VDI, and software-defined use cases.
Processor
Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Chipset
Intel C620 series chipset
Accelerators
N/A
Memory
DIMM Speed
Up to 3200 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR4 DIMM slots
Maximum RAM
RDIMM 1 TB
Storage
Front Bays
0 drive bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA 8 x 2.5-inch NVMe (HDD/SSD) max 184.32 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
Storage Controllers
Internal Controllers
PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355I
External Controllers
PERC H840, HBA355E
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC Truesight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter and vRealize Operations Manager
OpenManage connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI
Power Supplies
600W Platinum 100–240 VAC or 240 VDC, hot swap redundant
800W Platinum 100–240 VAC or 240 VDC, hot swap redundant
1100W DC/-48–(-60) V
1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant
1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant
Ports
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0
Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
5 x PCIe Gen4 slots 1 x PCIe Gen3 slot
3 x16 Gen4 (x16 connector) full height, half length
1 x4 Gen3 (x8 connector) full height, half length
2 x16 Gen4 (x16 connector) full height, full length (optional)
Video Card
1 x VGA
Bezel
Optional security bezel
Form Factor
2U tower server
Dimensions & Weight
Height
86.80 mm (3.41 inches)
Width
482.00 mm (18.97 inches)
Depth
707.78 mm (27.85 inches) without bezel
721.62 mm (28.40 inches) with bezel
Weight
Max 28.60 kg (63.00 lbs.)
Rack Support
System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
