Product Details
＋
B230 Expansion Battery from BLUETTI
The BLUETTI B230 is an expandable battery designed to be used with the AC200Max Power Station.
Features
- B230 equipped with 2048Wh capacity.
- One 100W USB-C, a 12V/10A car output and a USB-A ports.
- Versatile power inputs allow you to recharge no matter where you are.
- Solar charging, car charging and lead-acid battery charging need to be realized through D050S
Never Run out of Power
- BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC (Adapter sold separately), car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.
Versatile Power Source
- The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.
Give Your Devices More Runtime
- B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.
Home Backup and Trip Power Bank
- The AC200MAX B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.
Specifications
|
BATTERY INFO |
Capacity: |
2,048Wh (51.2V,40Ah) |
| Cell Chemistry: |
Lithium Iron Phosphate (LiFePO4) |
|
| Lifecycle: |
3,500 Cycles to 80% Original Capacity |
|
| Shelf-Life: |
Recharge to 80% Every 3-6 Months |
|
| Management System: |
MPPT Controller, BMS, etc. |
|
|
OUTPORTS |
USB-C Port: |
1 x 100W Max. |
| USB-A Port: |
1 x 18W USB-A |
|
| 12V DC Outlets: |
1 x 12V/10A (Car Outlet) |
|
|
INPUT |
AC Input: |
500W Max. |
| Solar Input: |
500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S) |
|
| Car Input: |
12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
|
| Lead-acid battery: |
12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
|
| Max Input: |
500W | |
|
RECHARGE TIME |
AC Adapter (500W): |
≈5.5~6 Hours |
| Solar Panel(500W): |
≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature) |
|
| 12V/24V Car Outlet (100W/200W): |
≈10 or 20 Hours |
|
|
GENERAL |
Compatibility: |
AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S) |
| Pass-through Charging: |
Yes | |
| Weight: |
21.8kg | |

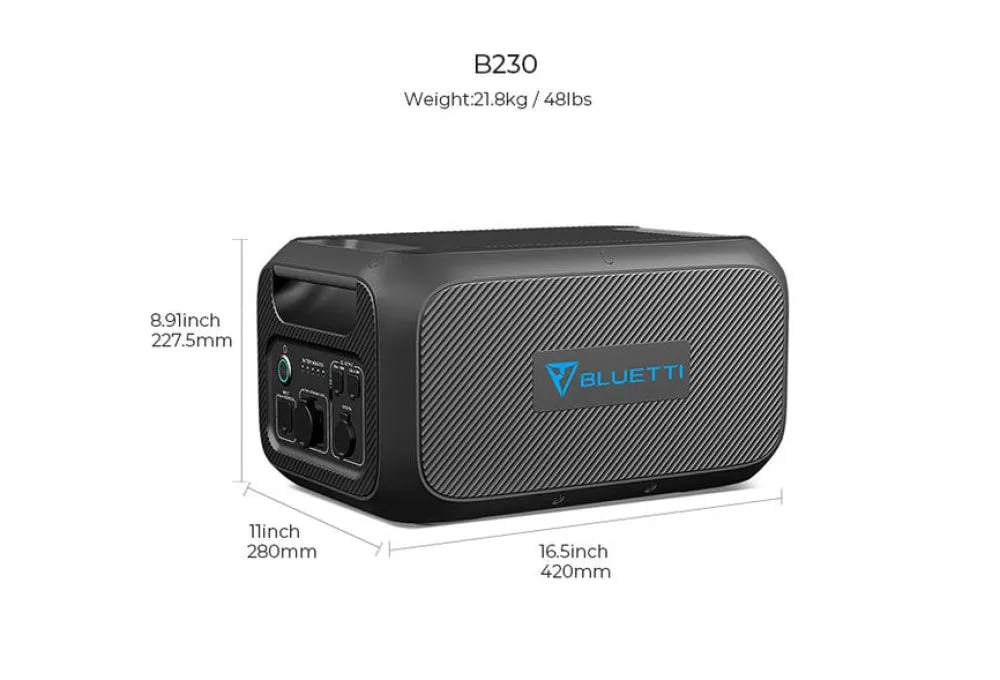

| Dimensions (LxWxD): |
16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm) |
|
| Operating Temperature: |
32°F-104°F (0-40°C) |
|
| Storage Temperature: |
-4-104℉(-20-40℃) |
|
| Certification: |
UL2743, UKCA, RCM, PSE, FCC, CE |
|
| Warranty: |
4 Year Manufacturer Warranty |
Package Includes
- 1 X B230 Battery Pack
- 1 X Battery Expansion Cable
- 1 X User Manual
- 1 X Warranty Card
- 1 x Certificate of QC Pass
Manual and Tutorial
Bluetti B230 User Manual
Bluetti B230 Tutorial and User Guide:
