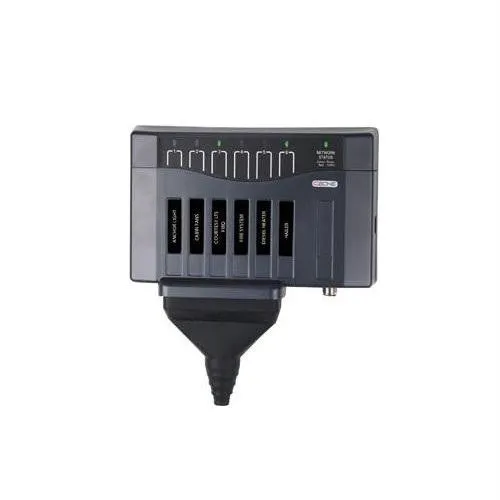

BEP CZone Output Interface with Connector and Boot

Model: 80-911-0009-00

• 4 levels of backup fusing including manual override (as required by ABYC)
• Multiple channels can be bridged together to offer higher current switching
• Small, non metallic, easy to install case
• 6 x 20 amps circuits
• IPX5 water ingress protection
• Programmable software fuse sizes

The Output Interface (OI) provides an intelligent replacement for traditional circuit breaker and fuse panels. It has 6x high power, robust output channels which provide the power supply, control and fusing for a circuit as well as integrating many other built in features such as timers and dimmers. Connection to the unit is simple: a large 6 way plug allows connections to cables of up to 16 mm2 (6AWG) in size, or multiple smaller conductors. No need for specialized crimp terminals and expensive crimp tools to be carried for terminations to CZone, just a blade screwdriver. A protective flexible boot offers protection to the connections from harsh environment conditions.

Input Voltage12vDC Input Draw85 mA (standby 60 mA) Dimensions7 29/32"" H x 5"" W x 1 3/4"" D
