Description

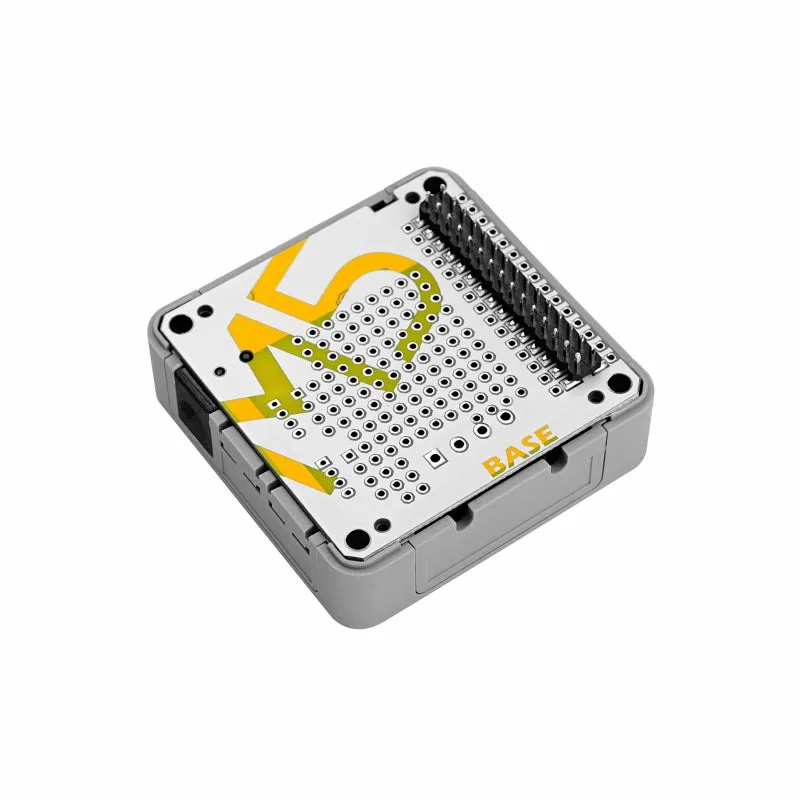

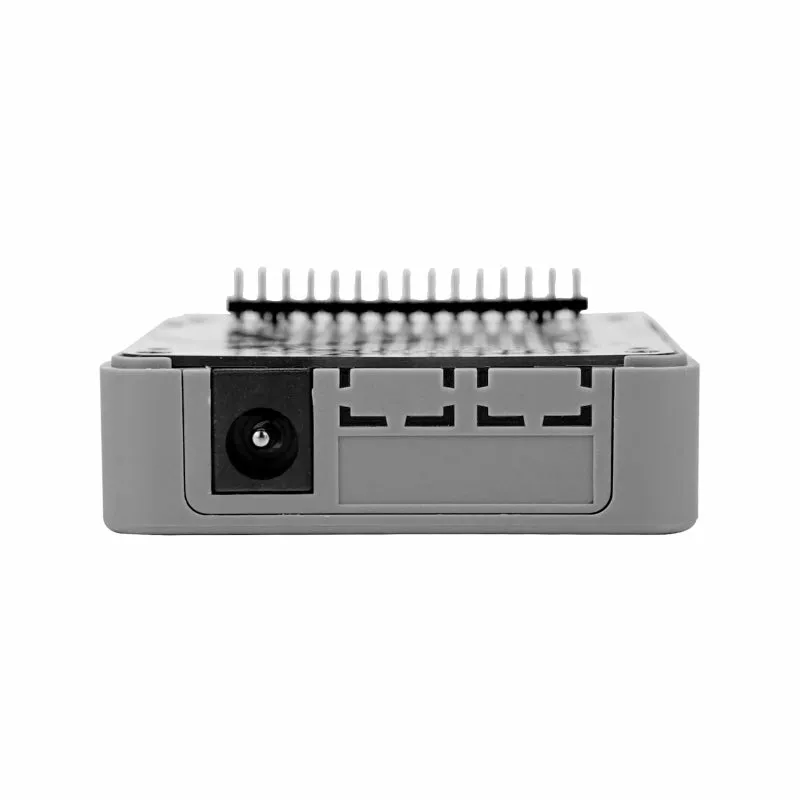

Base15 V1.1 is a "5x5cm system" universal functional base, the thickness of the product is 15mm (excluding the busbar pin header), including 9~24V to 5V DCDC circuit and 2 custom Grove expansion ports, as well as the PCB center 2.54mm spacing hole board area, users can independently add circuit functions. A variety of fixing methods are reserved in the structure, supporting DIN rail, wall mounting, screw fixing, and bottom M12 connector fixing. This product is mainly used for customers to customize the function base. (Customers can contact the official deep customization)

Features

Built-in 9-24V to 5V DCDC circuit

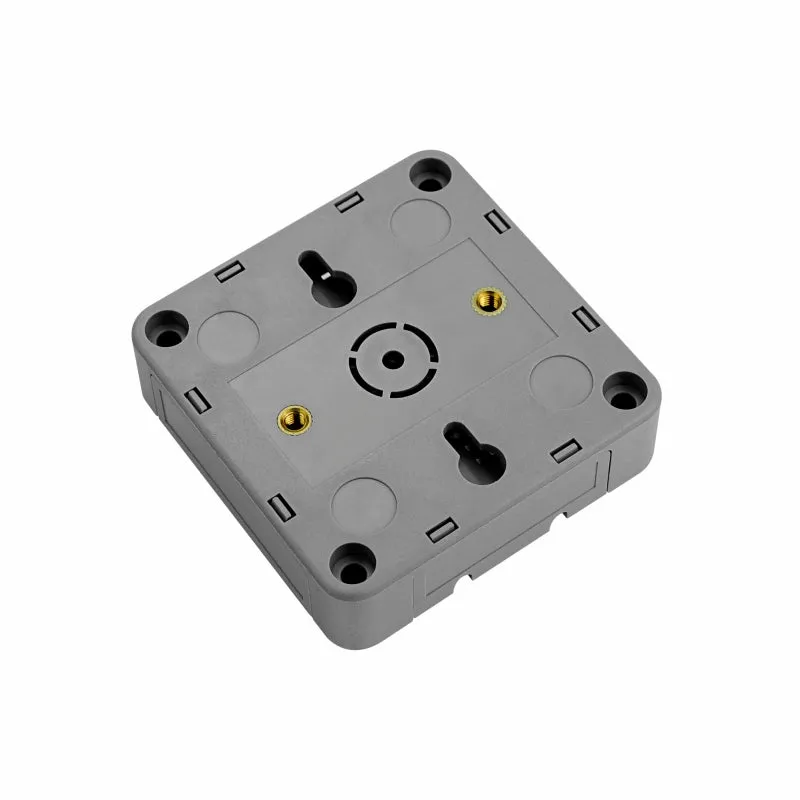

Rails, wall mounting, screws and M12 fastening
2.54MM HOLE PLATE
Includes 2 Grove expansion ports
Custom add circuits

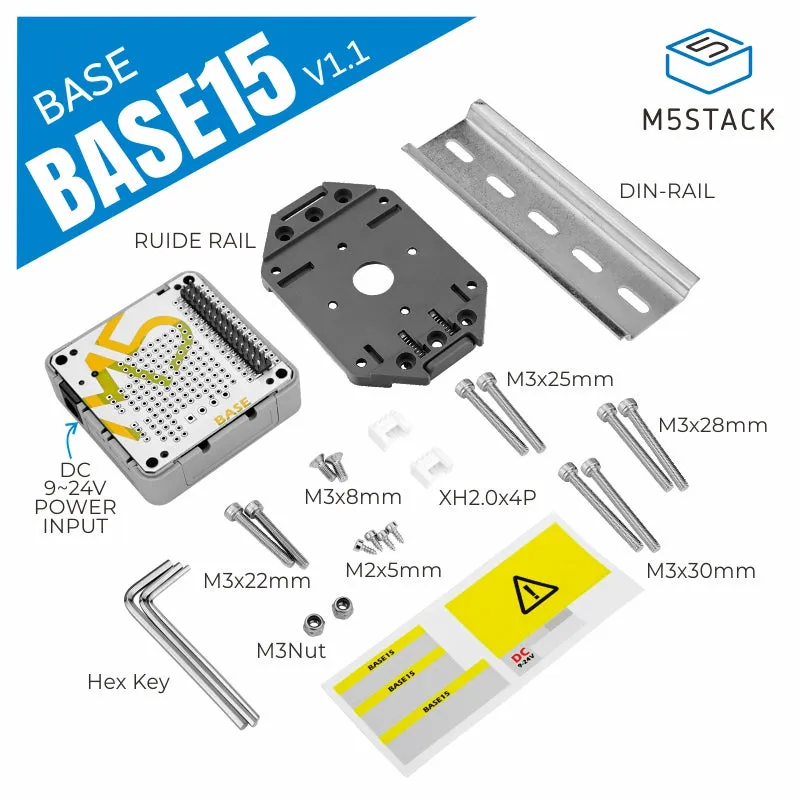

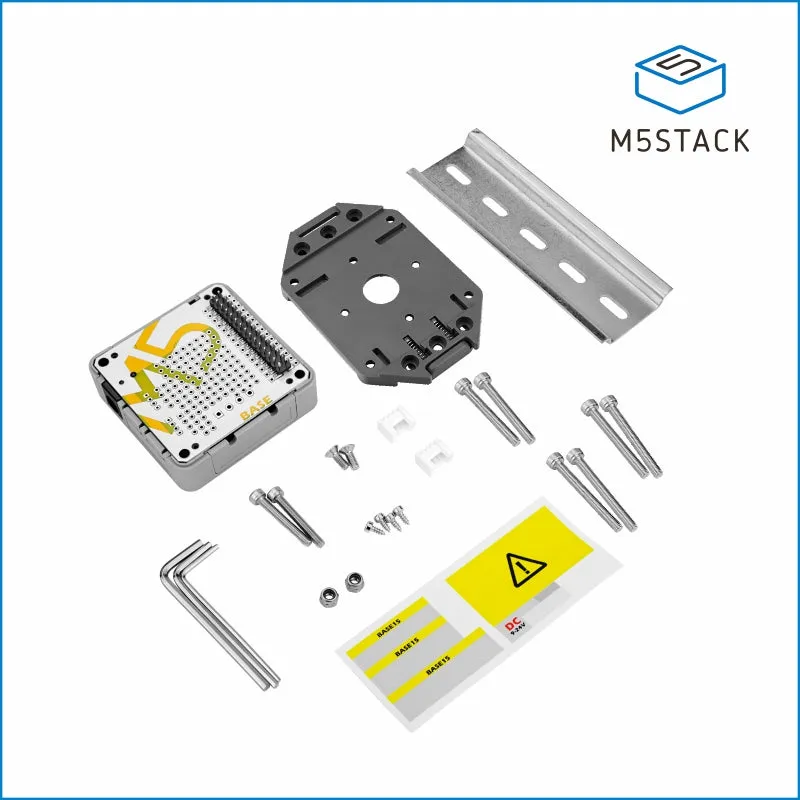

Includes

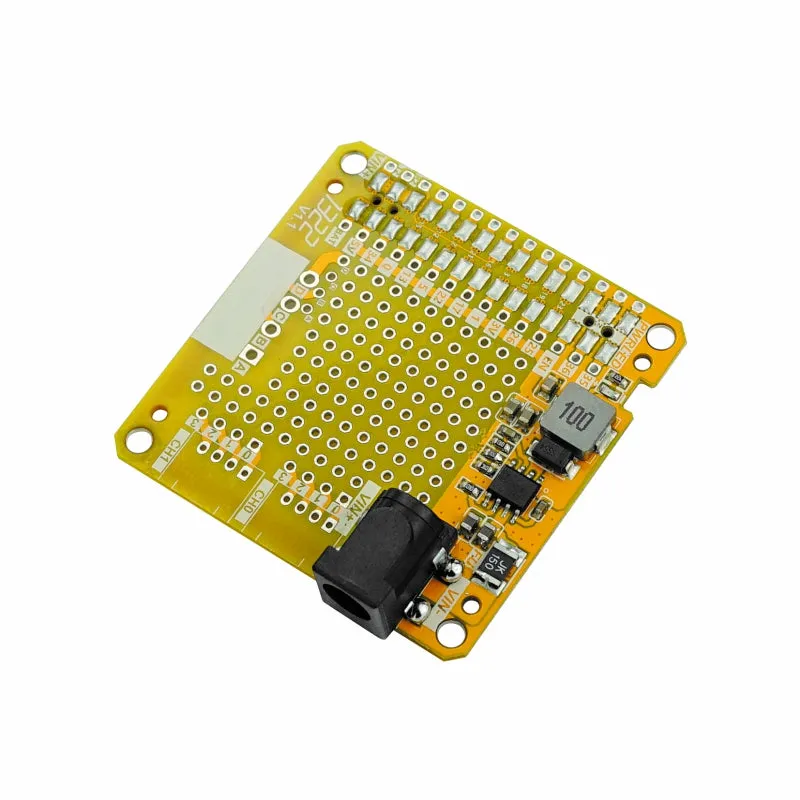

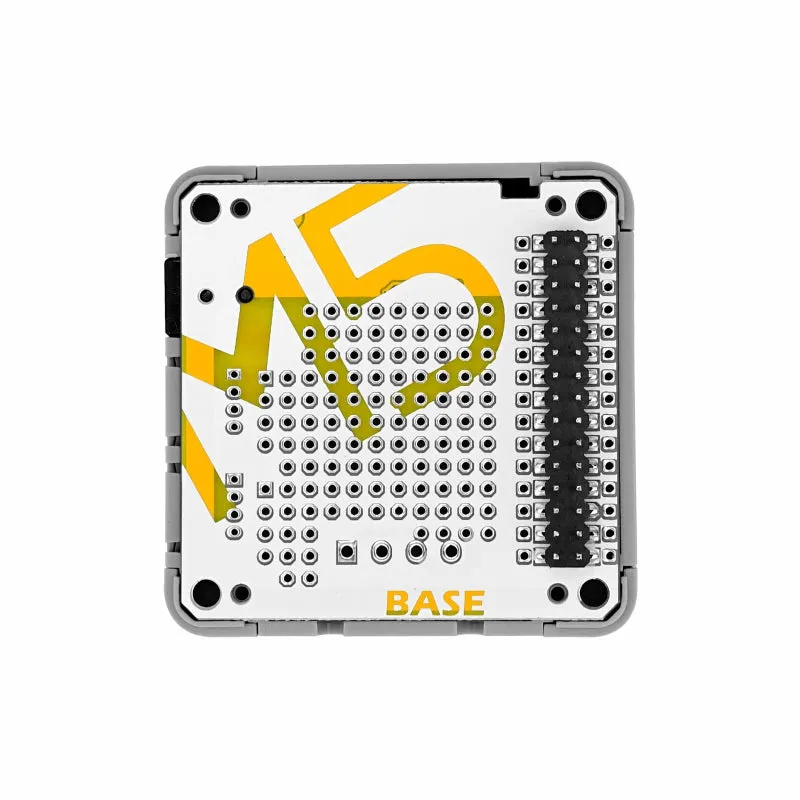

1x Base15 V1.1 Proto Board

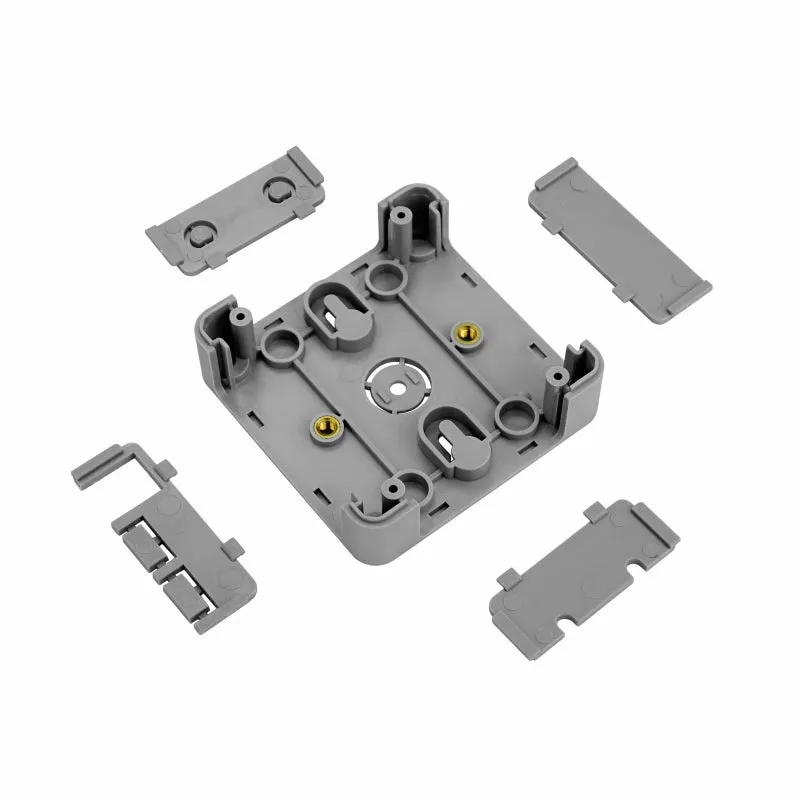

1x Base15 V1.1 base case
2x HY2.0-4P terminal
1x 1.5mm hex key
1x 2.0mm hex key
1x 2.5mm hex key

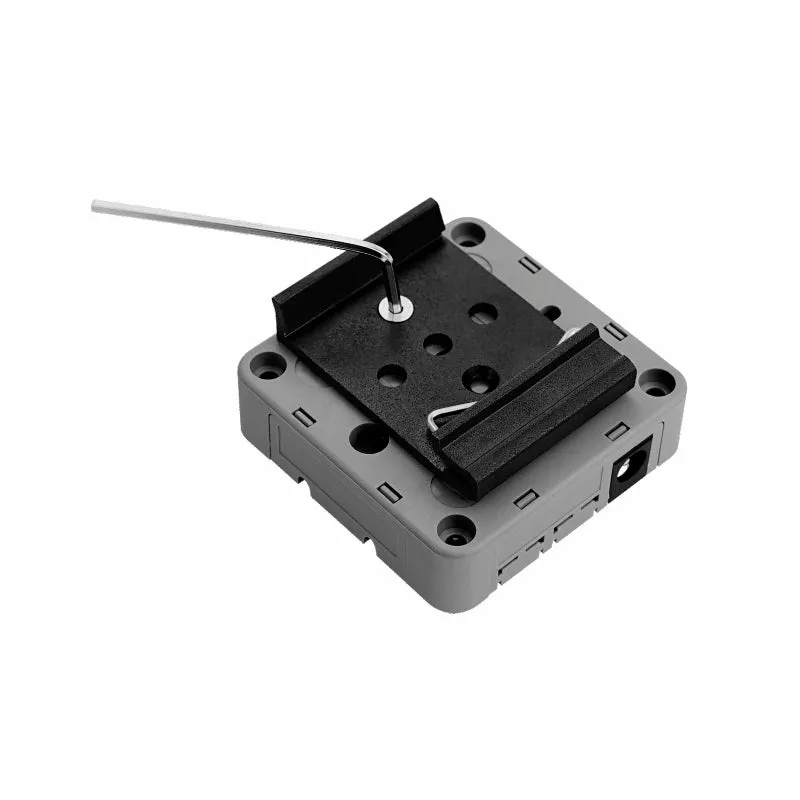

1x 35mm silver metal rail

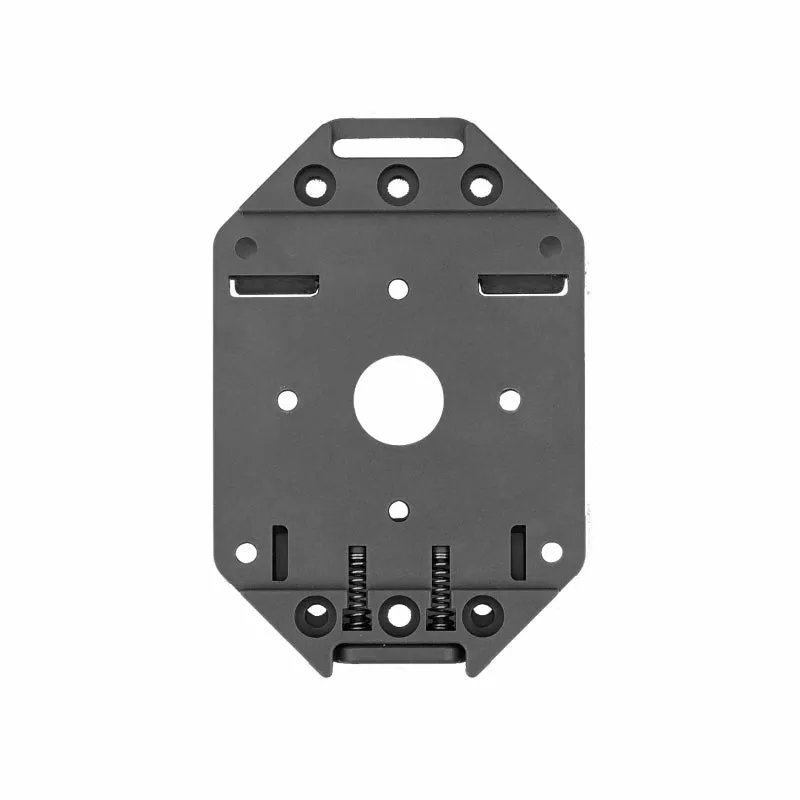

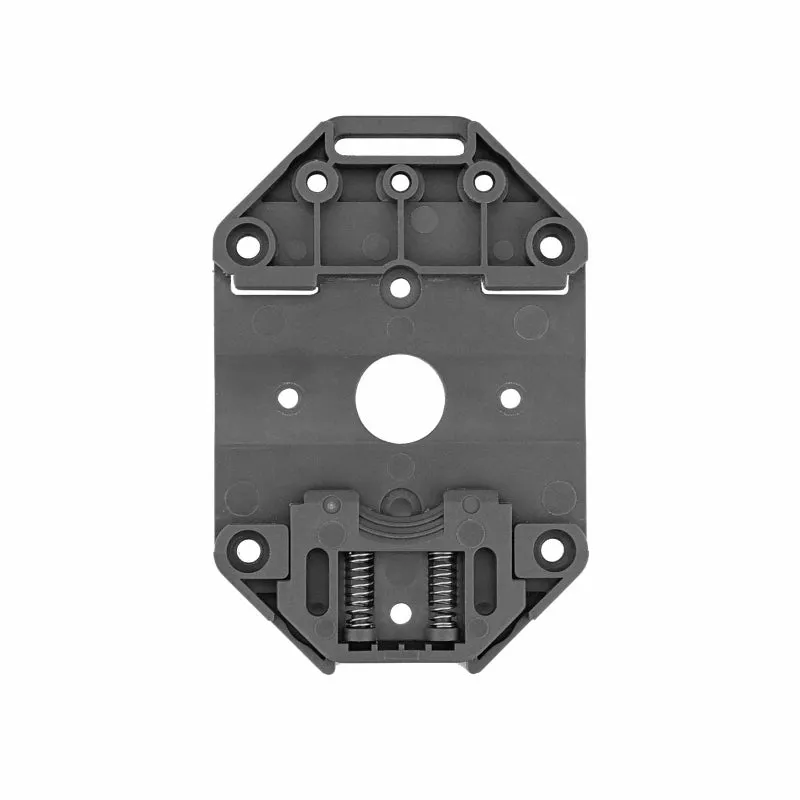

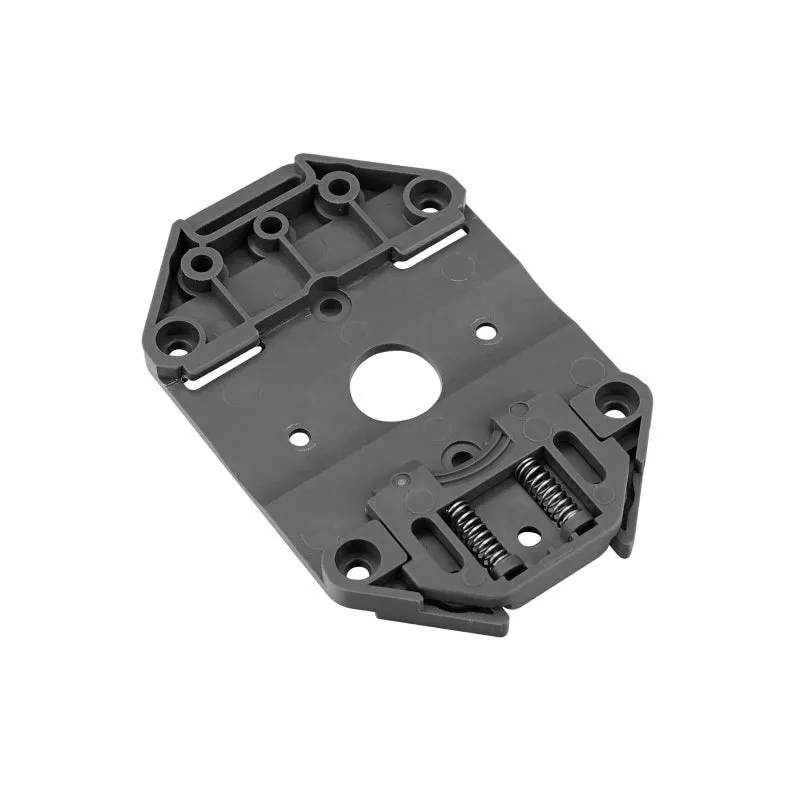

1x 35mm black rail clip
2x M3*8mm screws (countersunk head, mechanical teeth)
2x M3*22mm screws (cup head, mechanical teeth)
2x M3*25mm screws (cup head, mechanical teeth)
2x M3*28mm screws (cup head, mechanical teeth)
2x M3*30mm screws (cup head, mechanical teeth)
4x M2*5mm screws (cup head, self-tapping)
2x M3 nuts (with anti-skid rubber ring)
1x product sticker

Applications

DIY as needed functions

Specification

Resources	Parameters
DC-DC Convertor chip	MP1584
Wide Input Range	9-24V
Continuous Output Current	2A
Output Voltage	5V
Product Size	54mm × 54mm × 28mm
Package Size	105mm × 65mm × 40mm
Product Weight	27.1g
Package Weight	133.7g
