Product Details

SPECIFICATION

CPU

AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Chipset

AMD X870

Memory

4 x DIMM slots, max. 192GB, DDR5, Supports up to 8000 MT/s (OC), ECC and Non-ECC, Dual channel, AMD EXPO™, ASUS AEMP, On-Die ECC function (varies by CPU)

Graphics

1 x DisplayPort (8K@30Hz), 1 x HDMI™ 2.1 (4K@60Hz), 2 x USB4® (40Gbps) with DP Alt mode (4K@60Hz)

Expansion Slots

- AMD Ryzen™ 9000/7000: 1 x PCIe 5.0 x16
- AMD Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode)
- AMD X870: 1 x PCIe 4.0 x16 (x4 mode)

Storage

- 4 x M.2 slots (PCIe 5.0 & 4.0 modes)
- 2 x SATA 6Gb/s ports
- AMD RAIDXpert2 supports PCIe/SATA RAID 0/1/5/10 (RAID 5 only with Ryzen 9000)

Ethernet

1 x Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be, 2x2, 160MHz, up to 2.9Gbps), Bluetooth® v5.4 (Wi-Fi 7 requires Windows 11 24H2 or later)

USB Ports

Rear: 2 x USB4® (40Gbps), 6 x USB 10Gbps (5 x Type-A, 1 x Type-C® with 30W PD), 4 x USB 5Gbps (Type-A)
Front: 1 x USB 20Gbps Type-C®, 2 x USB 5Gbps headers (supports 4 ports), 2 x USB 2.0 headers (supports 4 ports)

Audio

ROG SupremeFX 7.1 HD Audio (ALC4080), Savitech SV3H712 AMP, S/PDIF out, 32-Bit/384kHz playback support, Impedance sense, Premium audio capacitors

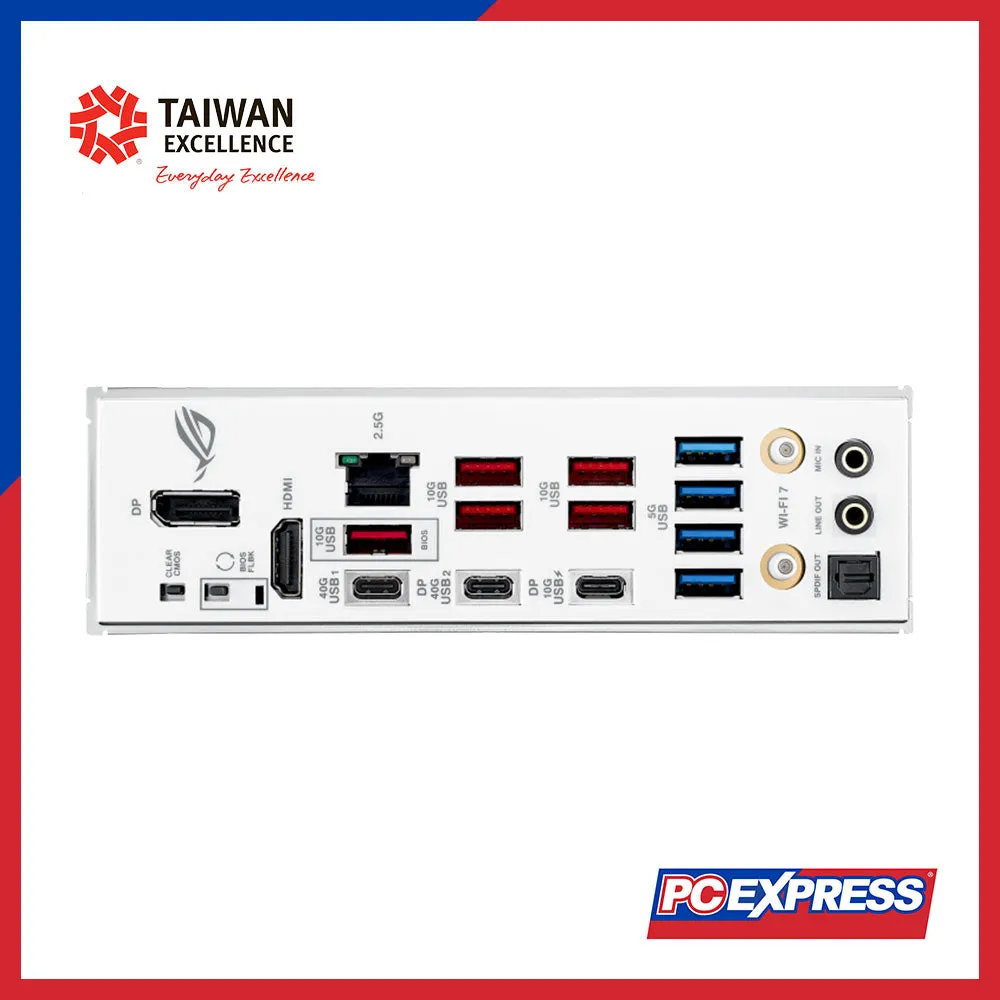

Back Panel I/O

2 x USB4® (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF, BIOS FlashBack™, Clear CMOS

Internal I/O

1 x 24-pin Main Power, 2 x 8-pin CPU Power, 4 x M.2 slots, 2 x SATA 6Gb/s, 1 x USB 20Gbps Type-C®, 2 x USB 5Gbps headers, 2 x USB 2.0 headers, 5 x 4-pin Chassis Fan headers, 3 x Addressable Gen 2 headers

Special Features

Extreme Engine Digi , ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release Slim, Q-DIMM), Aura Sync, M.2 heatsinks, Pre-mounted I/O shield, BIOS FlashBack™

Software Features

Armoury Crate, Aura Sync, Fan Xpert 4, AIDA64 Extreme, Norton 360 (60 days), Adobe Creative Cloud (trial), WinRAR (40 days)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, Dynamic OC Switcher, FlexKey

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x WiFi Q-Antenna, 1 x M.2 Q-Latch package, ROG stickers, ROG keychain

Operating System

Windows 11

Form Factor

ATX (30.5 cm x 24.4 cm)

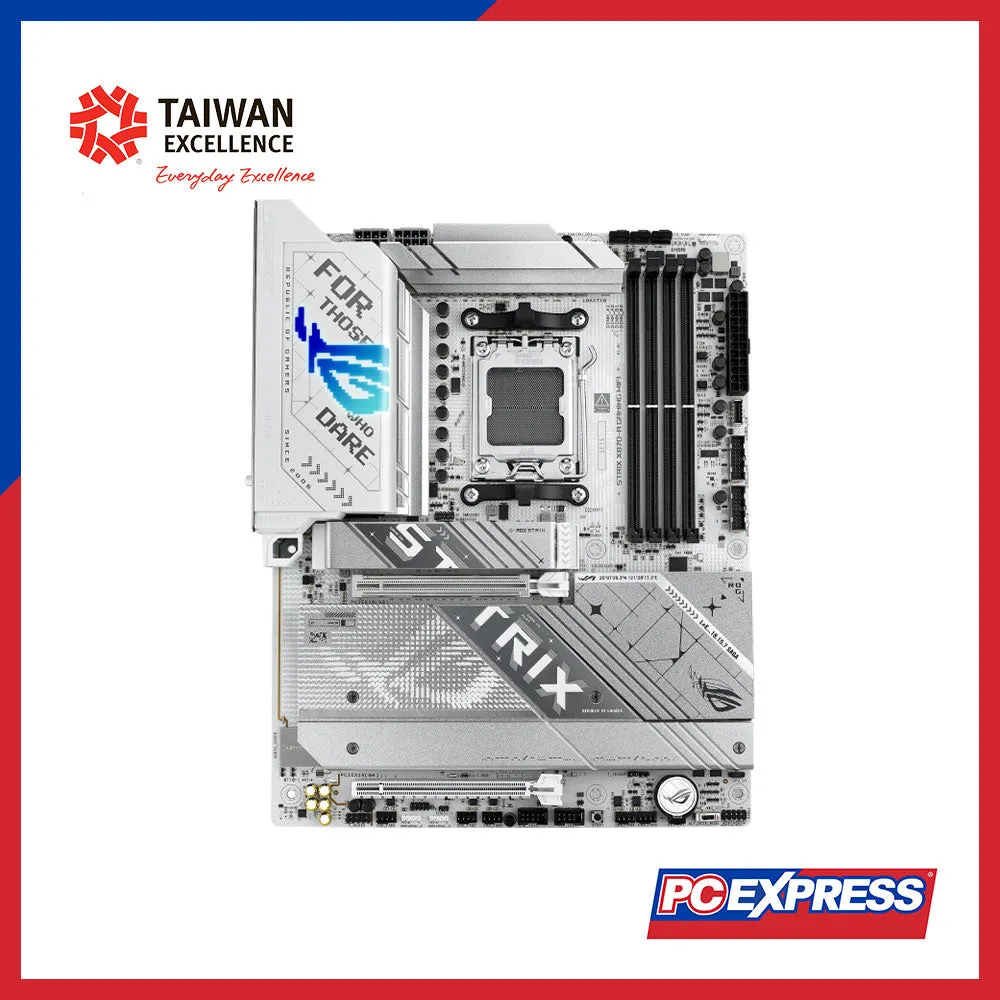

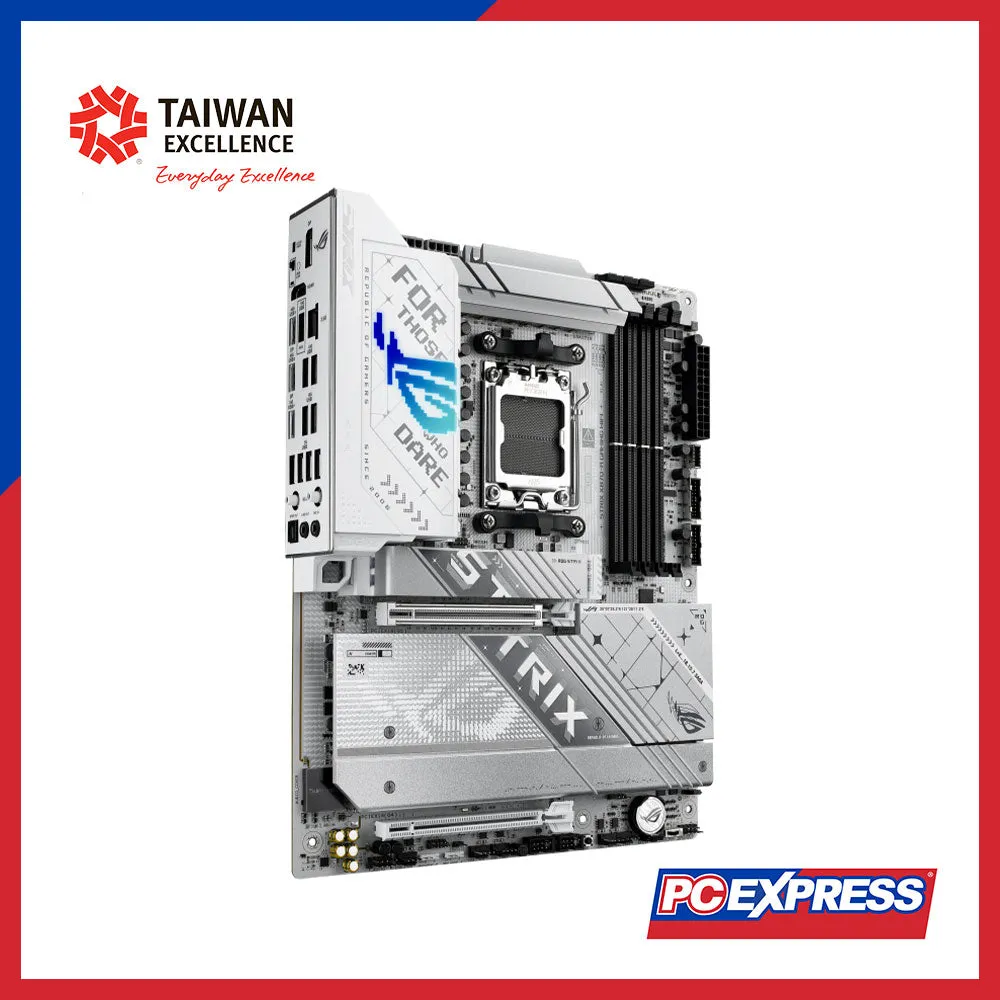

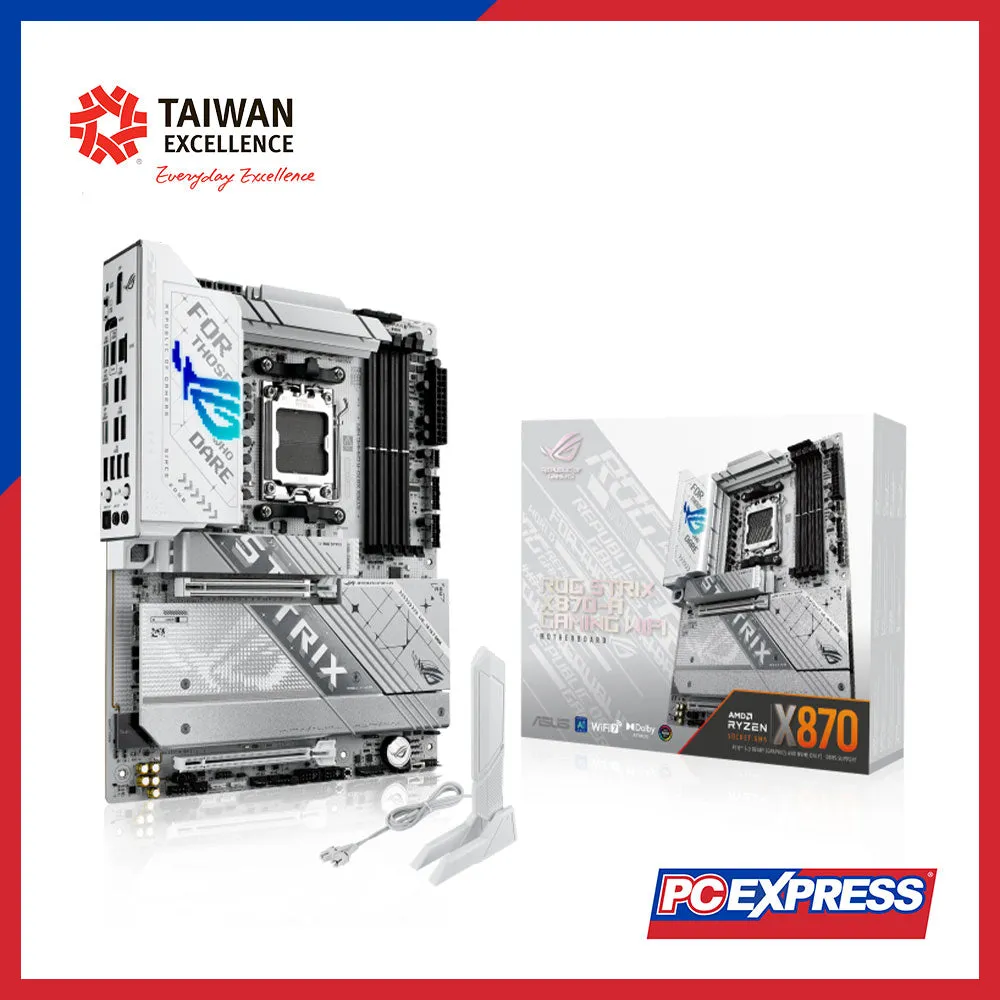

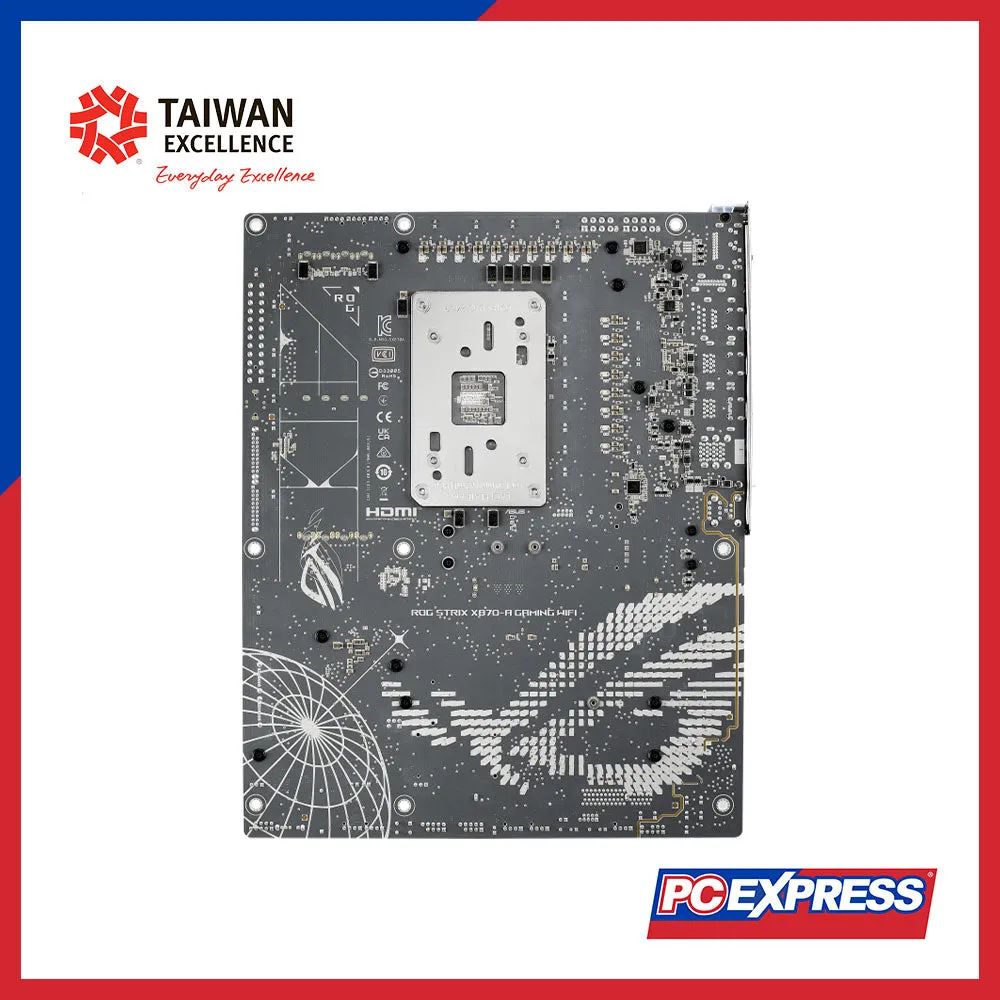

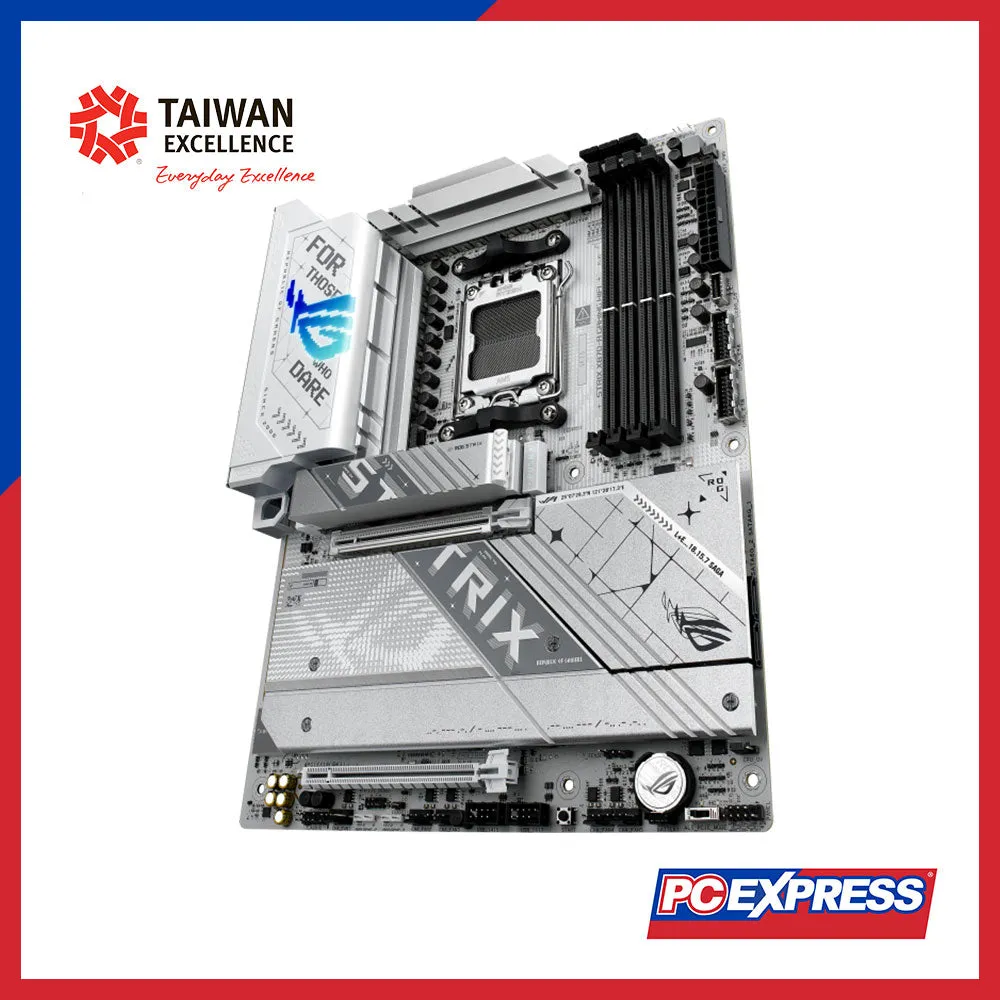

ASUS ROG STRIX X870-A GAMING WIFI ATX Motherboard
  • DefaultTitle

$ 87.00

$ 66.92

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
