ProArt B660-CREATOR D4 Specifications
CPU

IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô,

PentiumÆ Gold and CeleronÆ Processors

  Supports IntelÆ 10 nm CPU


Supports IntelÆ Turbo Boost Technology 2.0 and

IntelÆ Turbo Boost Max Technology 3.0**

  * Refer to www.asus.com for CPU support list.


** IntelÆ Turbo Boost Max Technology 3.0

support depends on the CPU types.

Chipset  IntelÆ B660
Memory

4 x DIMM, Max. 128GB, DDR4
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/

4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/

3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

  Dual Channel Memory Architecture
  Supports IntelÆ Extreme Memory Profile (XMP)
  OptiMem II


* Actual Memory frequency support depends

on the CPU types and DRAM modules,

for more information refer to www.asus.com for the Memory

QVL (Qualified Vendors Lists).

Graphics 1 x HDMIÆ port**
  1 x Type-C port supports DisplayPort output***
  1 x DP IN that will have output through Type-C port


* Graphics specifications may vary between CPU types.

Please refer to www.intel.com for any updates.

  ** Support 4K@60Hz as specified in HDMI 2.1.
  *** Support 8K@60Hz as specified in DisplayPort 1.4.


**** Output at the USB Type-CÆ ports left under RJ45 ports

requires a USB-C to DisplayPort adapter cable.

VGA resolution support depends on graphic cards' resolution.

Expansion Slots  IntelÆ 12th Gen Processors
  1 x PCIe 5.0/4.0/3.0 x16 slot
  IntelÆ B660 Chipset*
  1 x PCIe 3.0 x16 slot (supports x4 mode)
  1 x PCIe 3.0 x1 slot**
  * Supports IntelÆ Optane Memory H Series on PCH-attached PCIE slot


** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable

when M.2_2 runs at PCIe x4 mode by manually enabled.

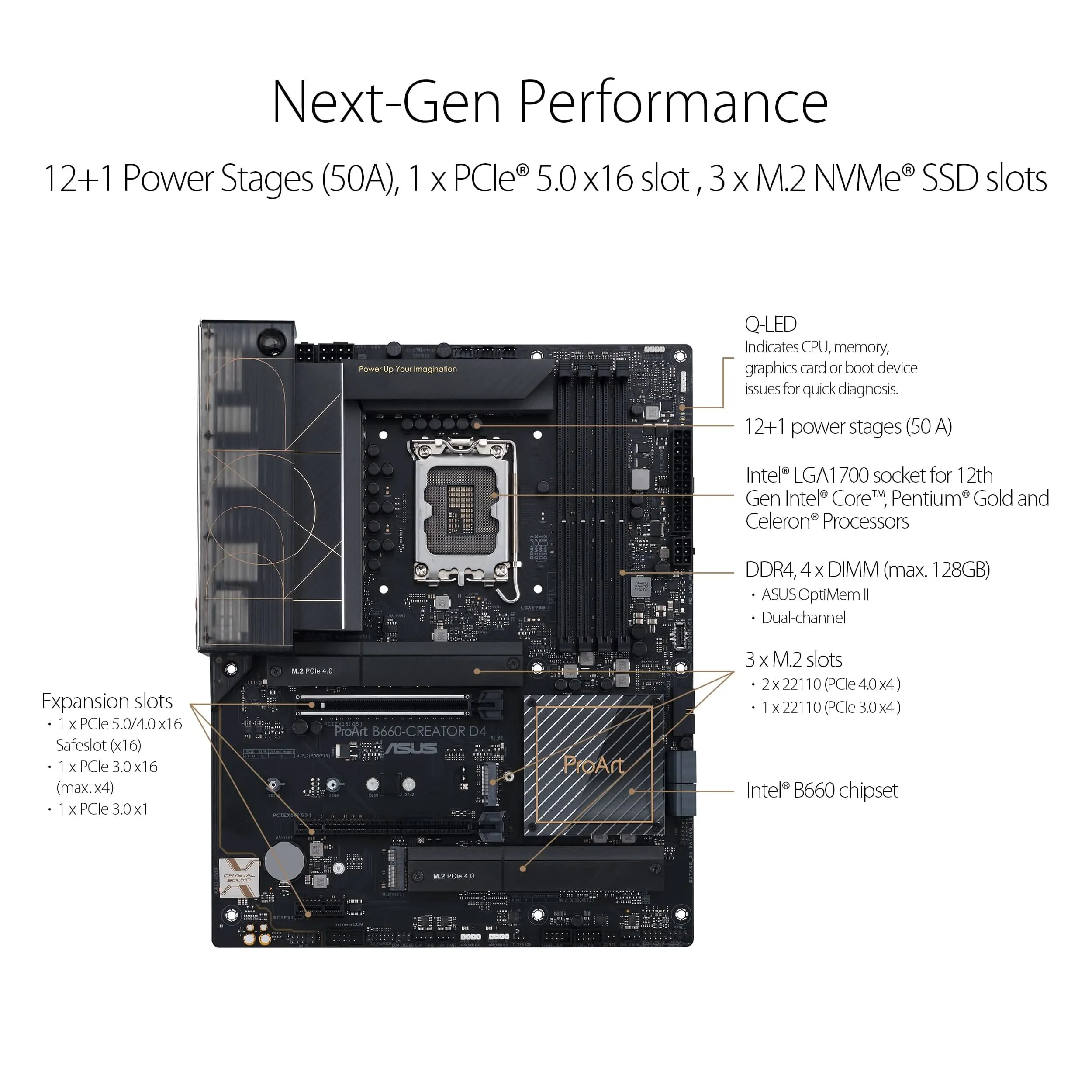

Storage  Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
  IntelÆ 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110
  - IntelÆ 12th Gen processors support PCIe 4.0 x4 mode.
  IntelÆ B660 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports***
  * IntelÆ Rapid Storage Technology supports SATA RAID 0/1/5/10.


** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory

H Series on PCH attached M.2 slots.



*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key

E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at

PCIe x1 or WiFi Key E slot.

Ethernet 1 x Realtek 2.5Gb Ethernet
  1 x IntelÆ 1Gb Ethernet
  ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately.
USB  Rear USB (Total 9 ports)
  1 x USB 3.2 Gen 2 Type-CÆ port (shared with DisplayPort graphic output)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  4 x USB 2.0 ports (6 x Type-A)
  Front USB (Total 7 ports)


1 x USB 3.2 Gen 2x2 connector

(supports USB Type-CÆ with 60W PD/QC4 )



1 x USB 3.2 Gen 1 header supports additional

2 x USB 3.2 Gen1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
  Audio Features


- Power pre-regulator reduces power

input noise to ensure consistent performance

  - Premium audio capacitors
  - Dedicated audio PCB layers
  - Audio cover
  - Unique de-pop circuit


* Due to limitations in HDA bandwidth, 32-Bit/192 kHz

is not supported for 7.1 Surround Sound audio.



** A chassis with an HD audio module in the front panel is

required to support 7.1 Surround Sound audio output.

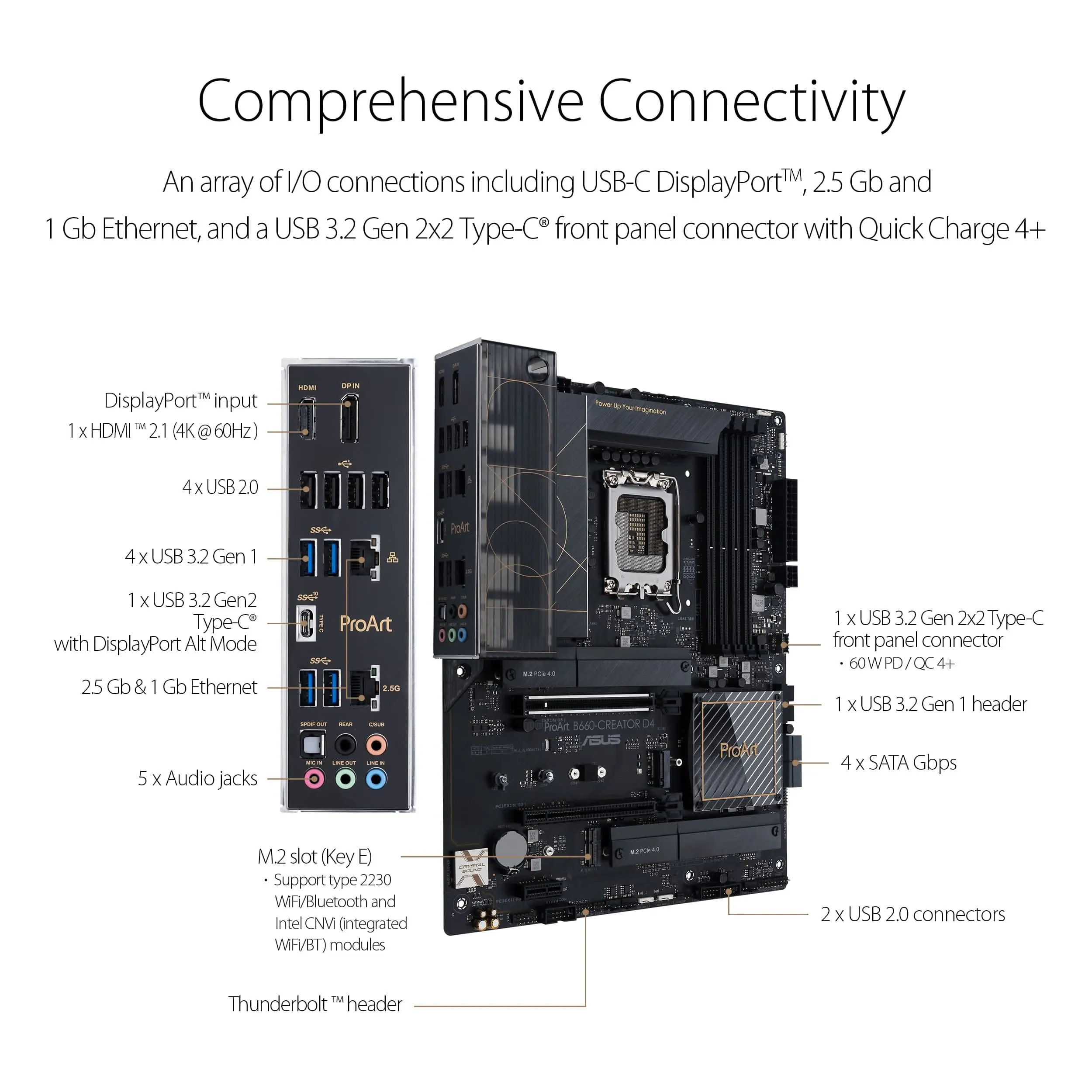

Back Panel I/O Ports  1 x USB Type-CÆ port supports USB 3.2 Gen2 and DisplayPort output
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort (Input only)
  1 x HDMIÆ port
  1 x Realtek  2.5Gb Ethernet port
  1 x IntelÆ 1Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
Internal I/O Connectors Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin 12V Power connector
  1 x 4-pin 12V Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB


1 x USB 3.2 Gen 2x2 connector

(supports USB Type-CÆ with 60W PD/QC4 )



1 x USB 3.2 Gen 1 header

supports additional 2 x USB 3.2 Gen1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x M.2 slot (Key E)
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header
  1 x Thunderboltô  header
Special Features  ASUS 5X PROTECTION III
  - DIGI VRM (- Digital power design with DrMOS)
  - Enhanced DRAM Overcurrent Protection
  - ESD Guards
  - LANGuard
  - Overvoltage Protection
  - SafeSlot
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - M.2 Q-Latch
  - Q-Connector
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - Q-Slot

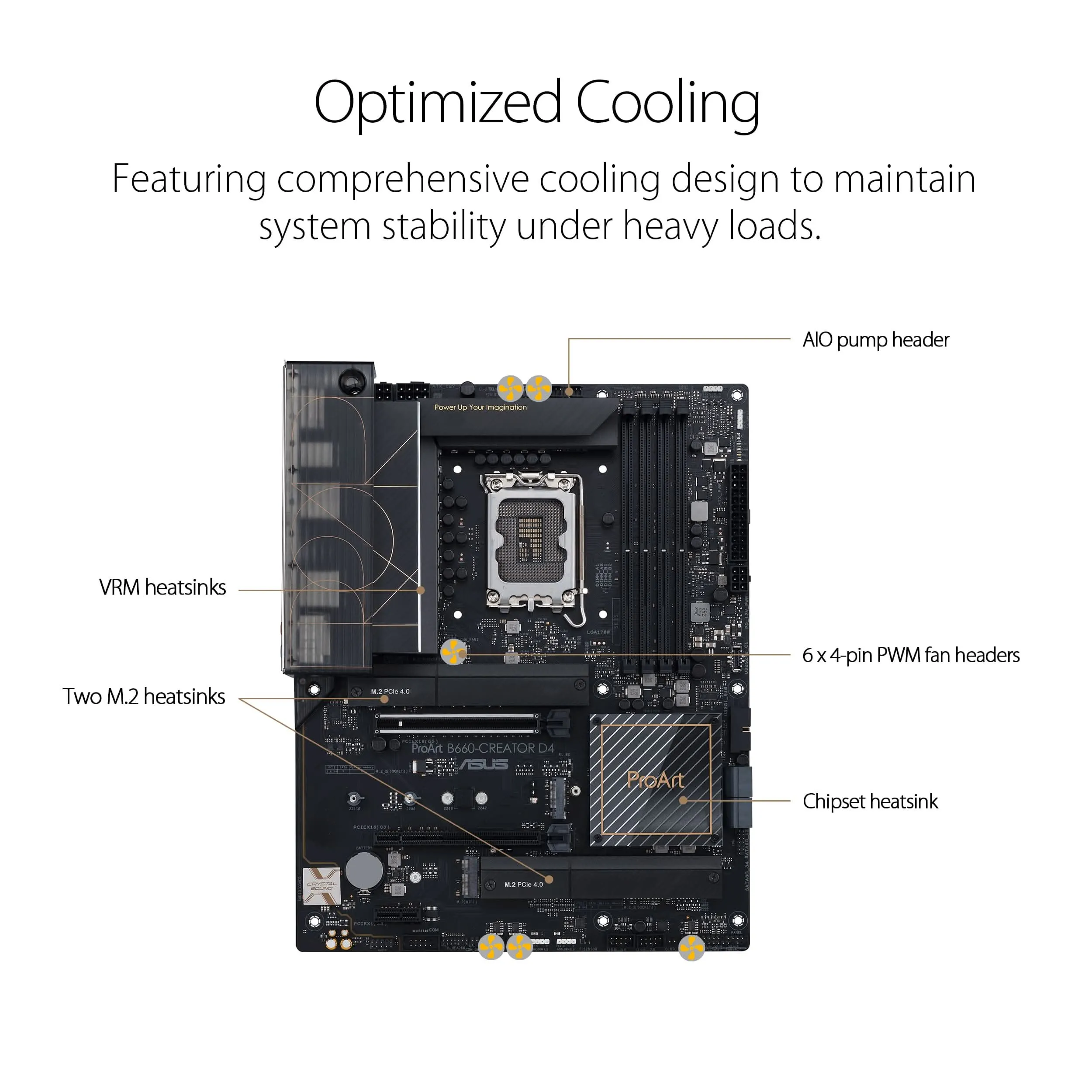

  ASUS Thermal Solution
  - Flexible M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - ProCool
  - Pre-mounted I/O shield
  AURA Sync
  - AURA RGB header
  - Addressable Gen 2 headers
Software Features ASUS Exclusive Software
  Armoury Crate
  - AURA Creator
  - AURA Sync
  - Fan Xpert 4
  - Two-Way AI Noise Cancelation
  AI Suite 3
  - Performance And Power Saving Utility
    EPU
    DIGI VRM
    Turbo app
  ASUS CPU-Z
  IT Management software supported
  - ASUS Control Center Express(ACCE)
  ProArt Creator Hub
  CreationFirst
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
BIOS  128 Mb
Manageability  WOL by PME, PXE

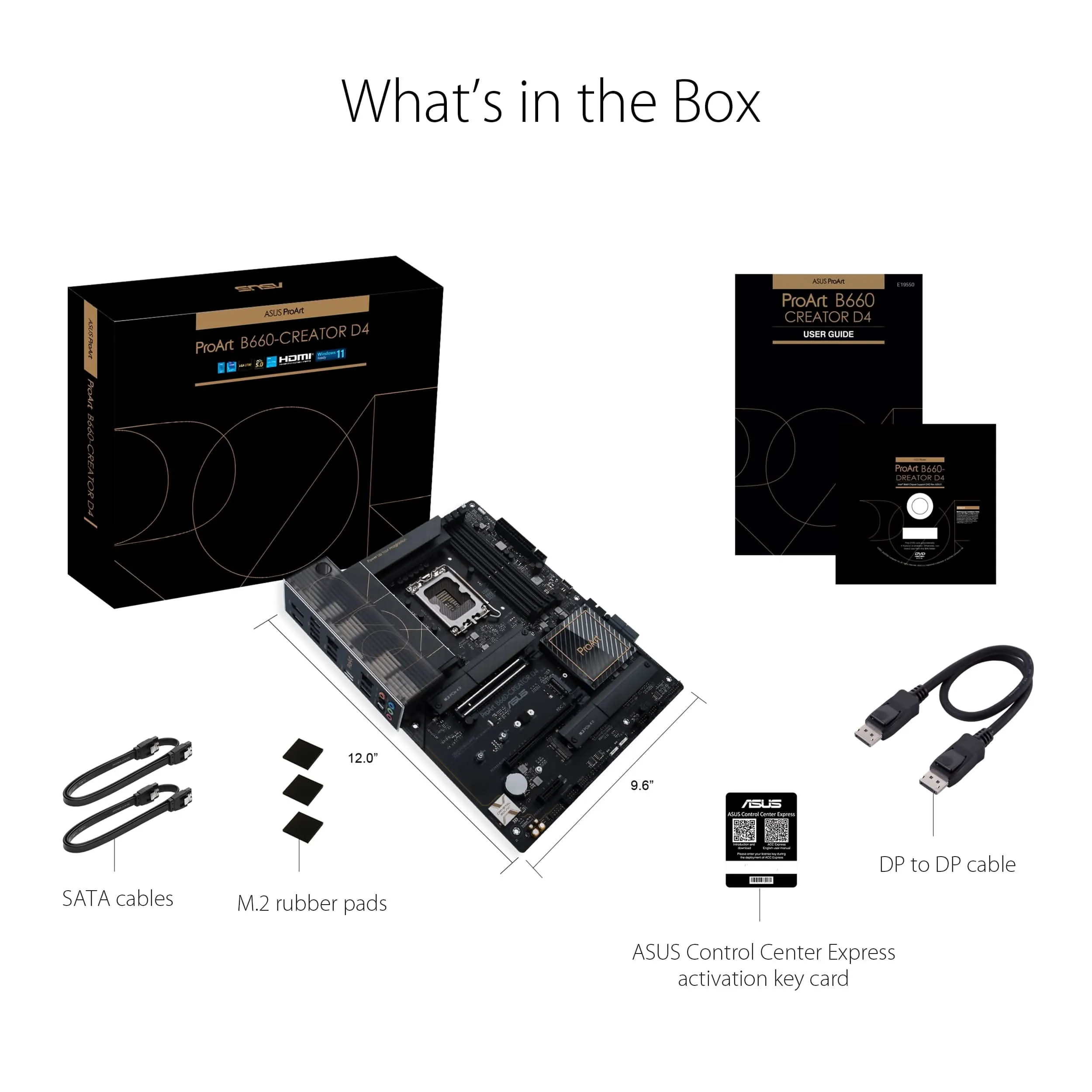

Accessories  Cables
  1 x DisplayPort cable
  2 x SATA 6Gb/s cables
  Miscellaneous
  3 x M.2 Rubber Packages
  1 x Q-connector
  Installation Media
  1 x Support DVD
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide
Operating System  WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
Form Factor  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Product (mm)_ L*W*H 305mm*244mm*50mm
Color Box (mm)_ L*W*H 331mm*266mm*76mm
Motherboard only Weight 1.543 Kg
Full package Weight 2.427 Kg

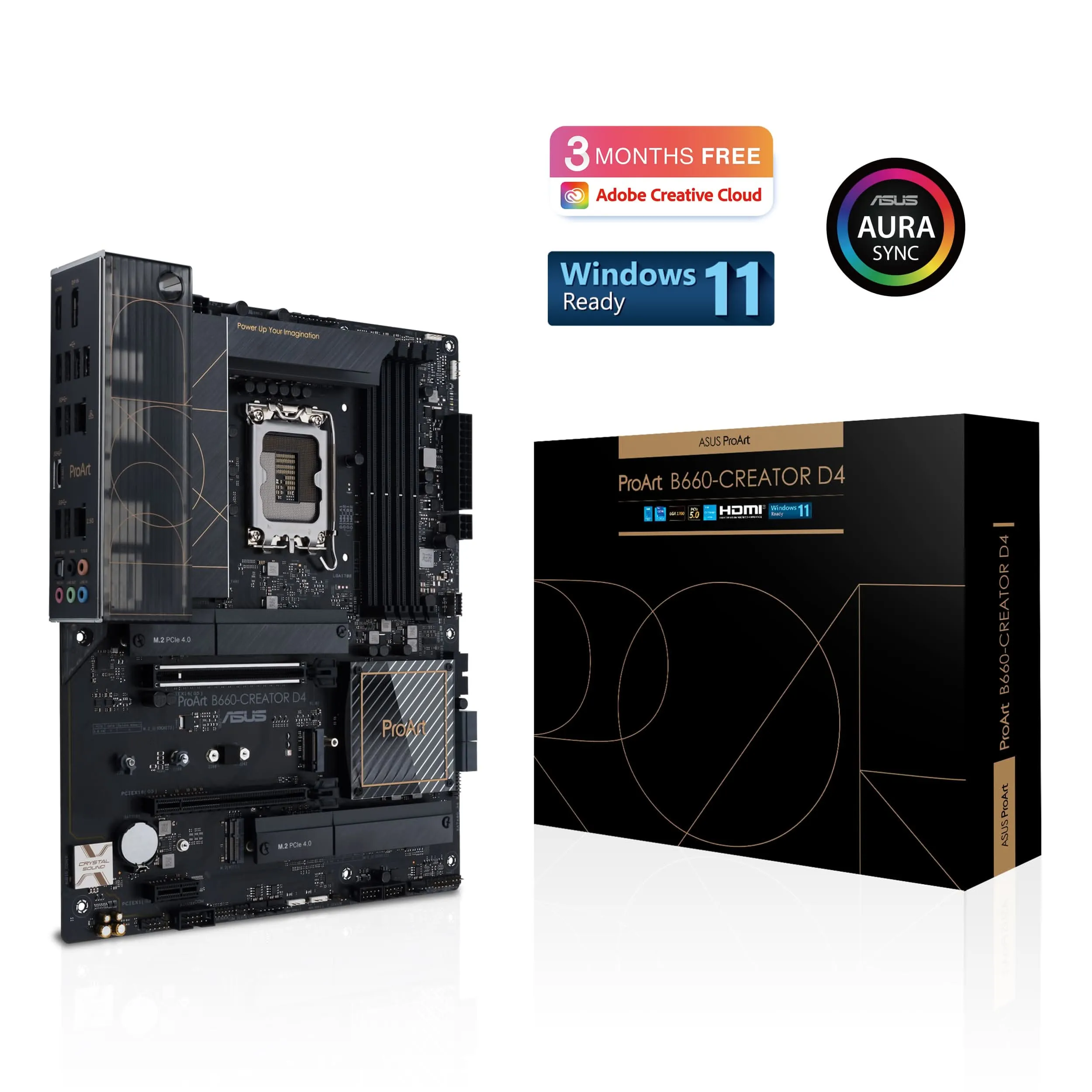

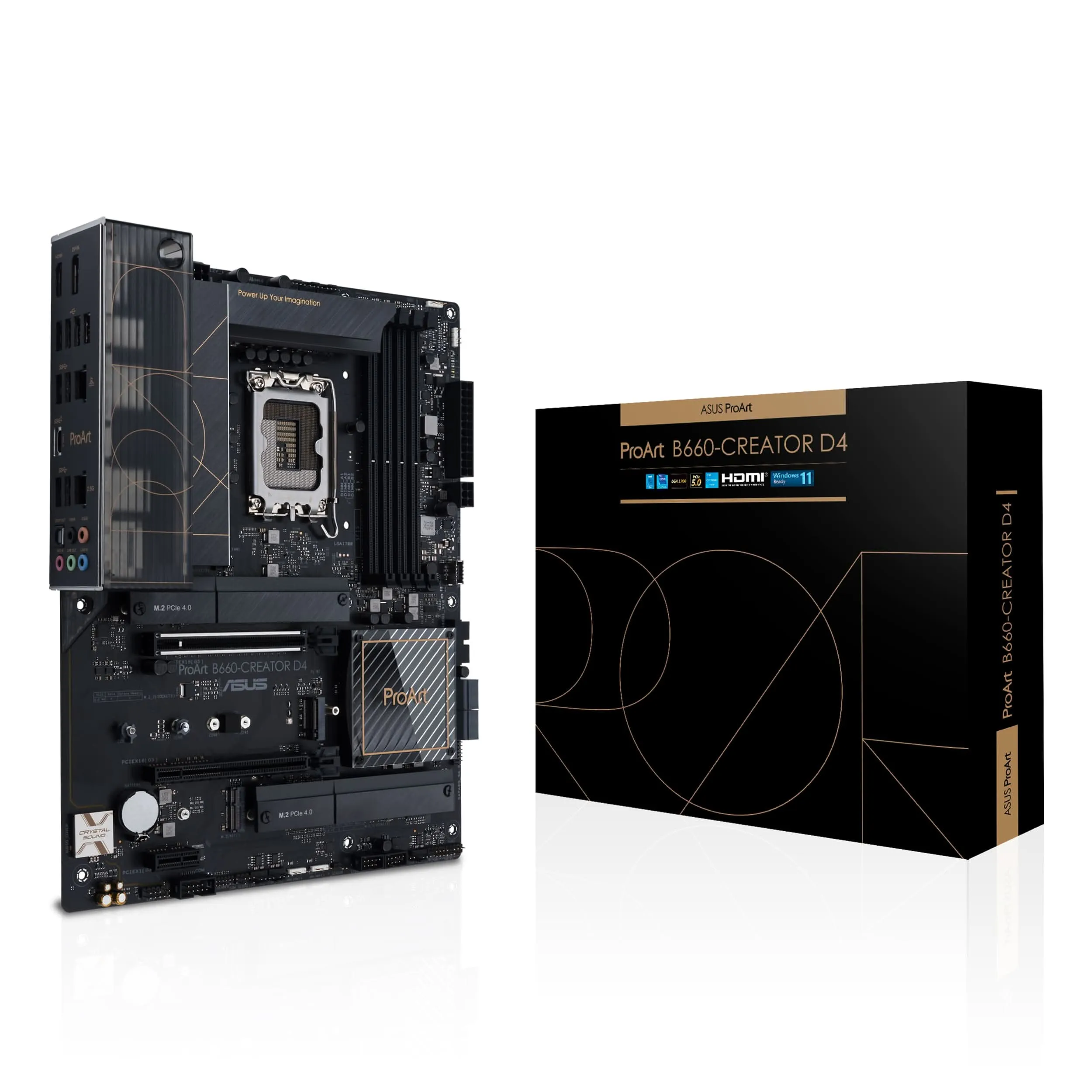

ASUS PRO B660 CREATOR DDR4 INTEL LGA1700 MOTHERBOARD
