Product Details
CPU IntelÆ Socket LGA1700 for 13th, 12th Gen IntelÆ Coreô, Pentium Gold and Celeron Processors
Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Z790
Memory 4 x DIMM, Max. 128GB, DDR4
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports IntelÆ Extreme Memory Profile (XMP)
OptiMem II
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics 1 x DisplayPort**
1 x HDMIÆ port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Support 4K@60Hz as specified in DisplayPort 1.4.
***Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots IntelÆ 13th Gen and 12th Gen Processors*
1 x PCIe 5.0 x16 slot
IntelÆ Z790 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
IntelÆ Z790 Chipset**
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Ethernet 1 x IntelÆ 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
USB Rear USB:Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High
Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

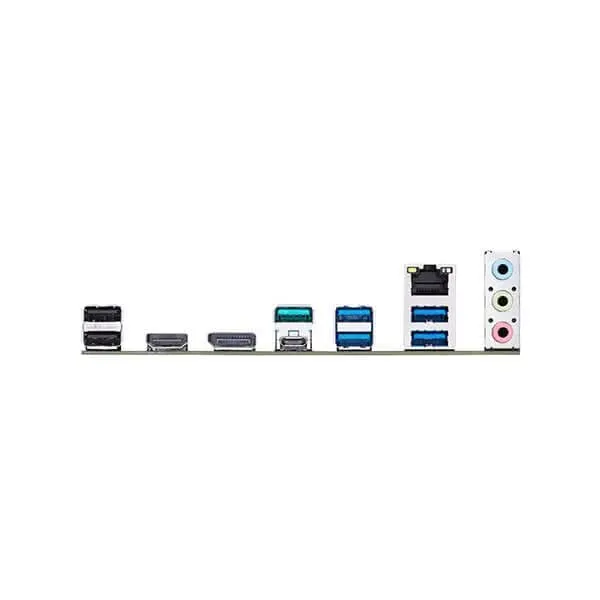

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMIÆ port
1 x IntelÆ 1Gb Ethernet port
3 x Audio jacks
Intrernal I/O Connectors Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin 12V Power connector
1 x 4-pin 12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderboltô header
Special Features ASUS 5X PROTECTION III
DIGI VRM (- Digital power design with DrMOS)
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution
VRM heatsink design
ASUS EZ DIY
ProCool
AURA Sync
AURA RGB header
Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- AURA Sync
- Fan Xpert 4
Power Saving
AI Suite 3
TurboV EVO
EPU
DIGI VRM
PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 192 (128 64) Mb Flash ROM, UEFI AMI
BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 SSD screw packages
Documentation
1 x User guide
1 x ACC Express Activation Key Card
Operating System WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
Form Factor microATX
24.4cm x 24.4cm
Waranty 3 Years
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.

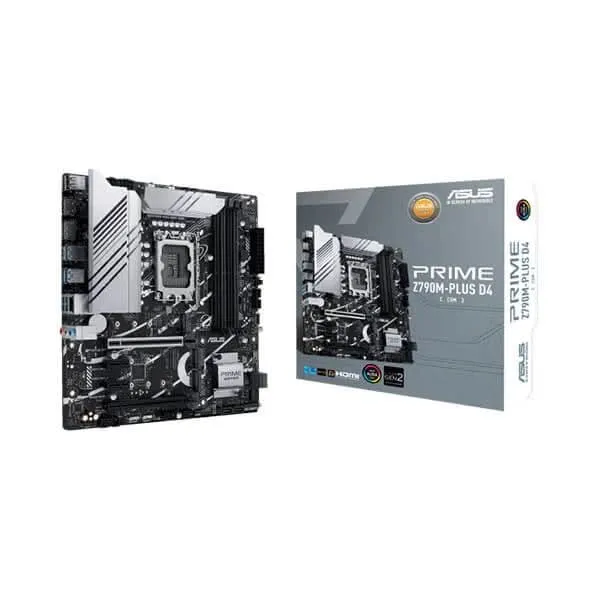

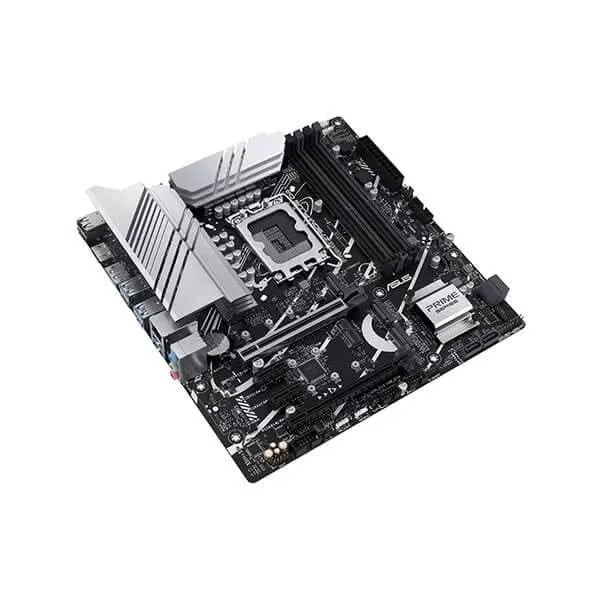

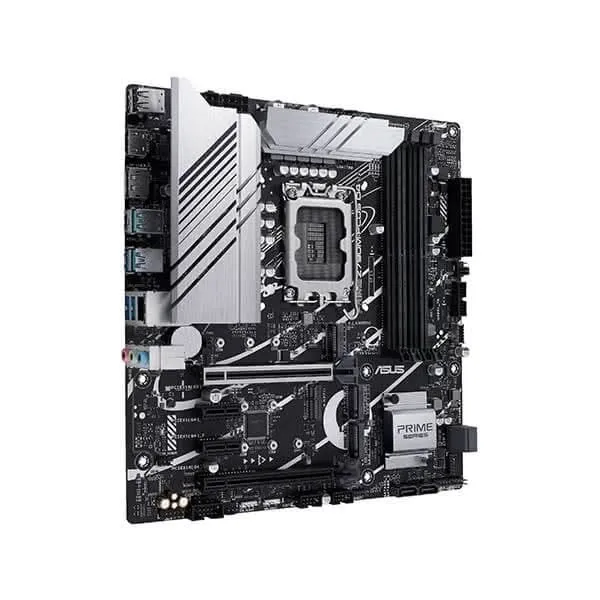

ASUS PRIME Z790M PLUS CSM DDR4 INTEL LGA1700 MOTHERBOARD
  • DefaultTitle

$ 54.70

$ 42.08
