Product Details
＋
CPU
|
AMD Socket AM5 for AMD Ryzenô 7000 Series Desktop Processors*
|
| * Refer to www.asus.com for CPU support list. | |
AMD X670 Chipset
|
|
Chipset
|
4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
|
| Dual Channel Memory Architecture | |
Memory
|
Supports AMD Extended Profiles for Overclocking (EXPOô) |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
1 x DisplayPort**
|
|
| 1 x HDMIÆ port*** | |
| * Graphics specifications may vary between CPU types. | |
Graphics
|
** Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
| *** Supports 4K@60Hz as specified in HDMIÆ 2.1. | |
AMD Ryzenô 7000 Series Desktop Processors
|
|
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD X670 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x4 mode) | |
Expansion Slots
|
1 x PCIe 3.0 x1 slot** |
| * Please check the PCIe bifurcation table at | |
| ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
|
|
| AMD Ryzenô 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| AMD X670 Chipset | |
Storage
|
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 6 x SATA 6Gb/s ports** | |
| * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
1 x Realtek 2.5Gb Ethernet
|
|
V-M.2 slot only (Key E, PCIe)*
|
|
| * Wi-Fi module is sold separately. | |
Rear USB (Total 10 ports)
|
|
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 3 x USB 3.2 Gen 2 ports (3 x Type-A) | |
Ethernet
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) | |
Wireless & Bluetooth
|
Front USB (Total 9 ports) |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
USB
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
|
|
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
|
|
Audio
|
3 x USB 3.2 Gen 2 ports (3 x Type-A) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIÆ port | |
| 1 x V-M.2 slot (Key E) | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBackô button | |

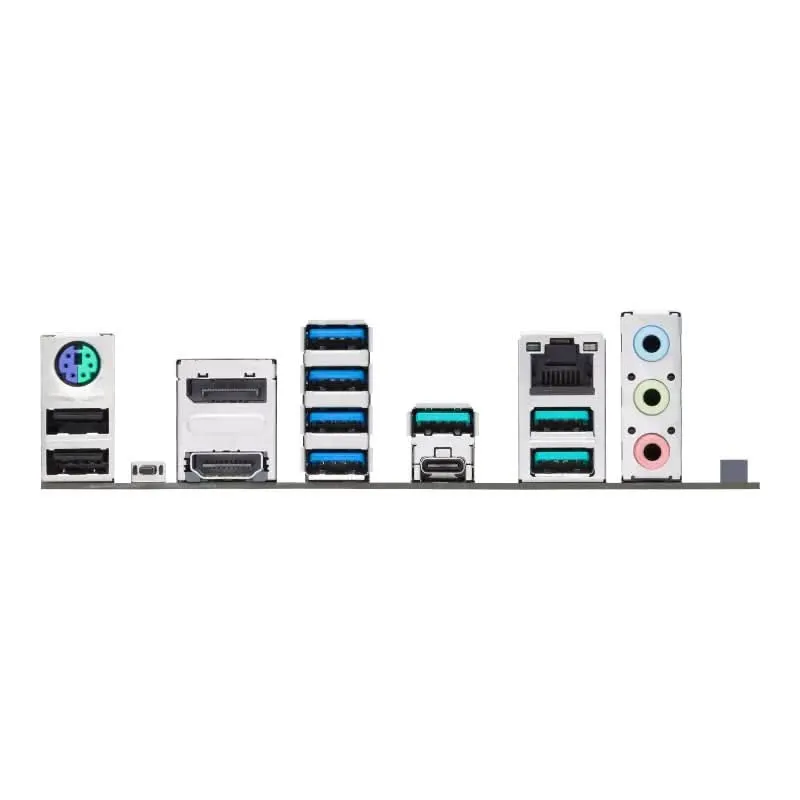

Back Panel I/O Ports
|
1 x PS/2 Keyboard/Mouse combo port |
Fan and Cooling related
|
|
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| 1 x 4-pin 12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
Internal I/O Connectors
|
6 x SATA 6Gb/s ports |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x Aura RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5 pin System Panel header | |
| 1 x Thunderboltô (USB4Æ) header | |
ASUS 5X PROTECTION III
|
|
| - DIGI VRM (- Digital power design with DrMOS) | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - Safeslot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED Core | |
| - Q-Slot | |
Special Features
|
ASUS Thermal Solution |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - ProCool | |
| Aura Sync | |
| - Aura RGB headers | |
| - Addressable Gen 2 headers | |
ASUS Exclusive Software
|
|
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 with AI Cooling II | |
| - Power Saving | |
| AI Suite 3 | |
| - TurboV EVO | |
| - DIGI VRM | |
| - PC Cleaner | |
| ASUS CPU-Z | |
| IT Management software supported | |
| - ASUS Control Center Express(ACCE) | |
Software Features
|
Norton Anti-virus software (Free Trial version) |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
256 Mb Flash ROM, UEFI AMI BIOS
|
|
WOL by PME, PXE
|
|
Cables
|
|
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x Rubber Package for M.2 | |
| 2 x Screw Packages for M.2 SSD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
WindowsÆ 11, WindowsÆ 10 64-bit
|
|
ATX Form Factor
|
|
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability
|
WOL by PME, PXE |
Accessories
|
Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x Rubber Package for M.2 | |
| 2 x Screw Packages for M.2 SSD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
Operating System
|
WindowsÆ 11, WindowsÆ 10 64-bit |
Form Factor
|
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
