Product Details
+
-
Exclusive featuresRock-Solid Durability
- 7 1 1 phase power supply, VCore GT 50A Dr.MOS
- Pre-installed I/O expansion card
- ASRock 4-layer PCB board POOL Technology
Ultrafast Connectivity
- 2.5 Gigabit LAN EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- -
processor- Supports 13th and 12th generation and next-generation Intel ® Core™ processors (LGA1700)
- Supports Intel ® Hybrid Technology
- Supports Intel ® Turbo Boost Max 3.0 Technology
- Supports Intel ® Thermal Velocity Boost (TVB)
- Supports Intel ® Adaptive Boost Technology (ABT) -
chip- Intel ® B760
-
Memory- Dual channel DDR4 memory technology
- 4 x DDR4 slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333 (OC) *
- Supports ECC UDIMM memory modules (non-ECC mode)
- System memory max Capacity: 128GB
- Supports Intel ® Extreme Memory Profile (XMP) 2.0 technology
* 1DPC 1R up to 5333 MHz (OC), native 3200 MHz.
1DPC 2R up to 4400 MHz (OC), native 3200 MHz.
2DPC 1R up to 4266 MHz (OC), native 3200 MHz.
2DPC 2R up to 4000 MHz ( OC), native 3200 MHz. -
BIOS- 128Mb AMI UEFI Legal BIOS, supports graphical interface
-
built-in display- Intel ®
_
_ 5K 120Hz
* Processors with built-in GPU functionality support Intel® UHD display chips with built-in visual enhancement functionality and display output. -
Sound effects- 7.1 channel high-fidelity audio (Realtek ALC897 audio codec)
- Nahimic Audio -
network- 2.5 Gigabit NIC 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5 Gigabit NIC software
- Fully intelligent automatic bandwidth optimization
- Visual friendly UI interface
- Visual network usage statistics table
- Built-in gaming, browsing and streaming mode bandwidth optimization
- user-defined priority control
Expansion slot
CPU:
- 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
Chipset:
- 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode *
- 1 x PCIe 3.0 x16 slot (PCIE4), supports x1 Mode *
- 1 x PCIe 3.0 x1 slot (PCIE2) *
- 1 x M.2 slot (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
- 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
Chipset:
- 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode *
- 1 x PCIe 3.0 x16 slot (PCIE4), supports x1 Mode *
- 1 x PCIe 3.0 x1 slot (PCIE2) *
- 1 x M.2 slot (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
* Supports NVMe SSD boot
store
CPU:
- 1 x Hyper M.2 slot (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset
:
- 1 x M.2 slot (M2_2, Key M), Support type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode *
- 1 x Hyper M.2 slot (M2_3, Key M), Support type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s port
- 1 x Hyper M.2 slot (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset
:
- 1 x M.2 slot (M2_2, Key M), Support type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode *
- 1 x Hyper M.2 slot (M2_3, Key M), Support type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s port
* Supports Intel ® Volume Management Device (VMD)
and supports NVMe SSD boot
and supports NVMe SSD boot
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- 1 x USB 3.2 Gen2 Type-C (front)
- 1 x USB 3.2 Gen1 Type-C (rear)
- 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 front)
- 4 x USB 2.0 (2 Rear, 2 front)
* All USB support ESD electrostatic protection
- 1 x USB 3.2 Gen1 Type-C (rear)
- 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 front)
- 4 x USB 2.0 (2 Rear, 2 front)
* All USB support ESD electrostatic protection
Connector
- 1 x SPI TPM header
- 1 x Chassis power-on warning function header and speaker header
- 2 x RGB LED header *
- 2 x Programmable LED header **
- 1 x CPU fan port (4-pin) ***
- 1 x CPU/water pump fan interface (4-pin) (smart fan speed control) ****
- 5 x case/water pump fan interface (4-pin) (smart fan speed control) *** **
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (high-density power port) -
1 x 4-pin 12V power port (high-density power port)
- 1 x Front Panel Audio Ports
- 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card) -
1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 port)
- 1 x Front Type C USB 3.2 Gen2 header (10 Gb/s
- 1 x Chassis power-on warning function header and speaker header
- 2 x RGB LED header *
- 2 x Programmable LED header **
- 1 x CPU fan port (4-pin) ***
- 1 x CPU/water pump fan interface (4-pin) (smart fan speed control) ****
- 5 x case/water pump fan interface (4-pin) (smart fan speed control) *** **
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (high-density power port) -
1 x 4-pin 12V power port (high-density power port)
- 1 x Front Panel Audio Ports
- 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card) -
1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 port)
- 1 x Front Type C USB 3.2 Gen2 header (10 Gb/s
* Supports up to 12V/3A, 36W LED light strips
** Supports up to 5V/3A, 15W LED light strips
*** CPU_FAN1 supports fan power up to 1A (12W).
**** CPU_FAN2/WP supports fan power up to 2A (24W) ).
***** CHA_FAN1~5/WP supports fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~5/WP can automatically detect 3-pin or 4-pin fans.
** Supports up to 5V/3A, 15W LED light strips
*** CPU_FAN1 supports fan power up to 1A (12W).
**** CPU_FAN2/WP supports fan power up to 2A (24W) ).
***** CHA_FAN1~5/WP supports fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~5/WP can automatically detect 3-pin or 4-pin fans.

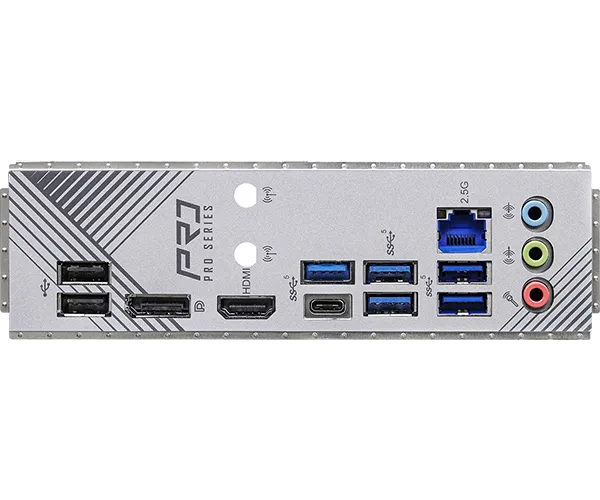

Rear panel output/input interface
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 5 x USB 3.2 Gen1 Type-A Port
- 2 x USB 2.0 Port
- 1 x RJ-45 Network Port
- HD Audio Jack: Line In/Front Speaker/Microphone
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 5 x USB 3.2 Gen1 Type-A Port
- 2 x USB 2.0 Port
- 1 x RJ-45 Network Port
- HD Audio Jack: Line In/Front Speaker/Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5 Gigabit LAN Software
- ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorite UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5 Gigabit LAN Software
- ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorite UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
* These apps can be downloaded from ASRock APP Shop.
appendix
- 1 x user manual
- 2 x SATA data cable
- 4 x M.2 slot screws
- 1 x M.2 plug-in holder
- 2 x SATA data cable
- 4 x M.2 slot screws
- 1 x M.2 plug-in holder
Specification
- ATX size: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
operating system
- Support Microsoft ® Windows 10 64-bit / 11 64-bit
Certification
- FCC, CE
- Supports ErP/EuP (requires a power supply that supports ErP/EuP)
- Supports ErP/EuP (requires a power supply that supports ErP/EuP)
