Product Details
＋

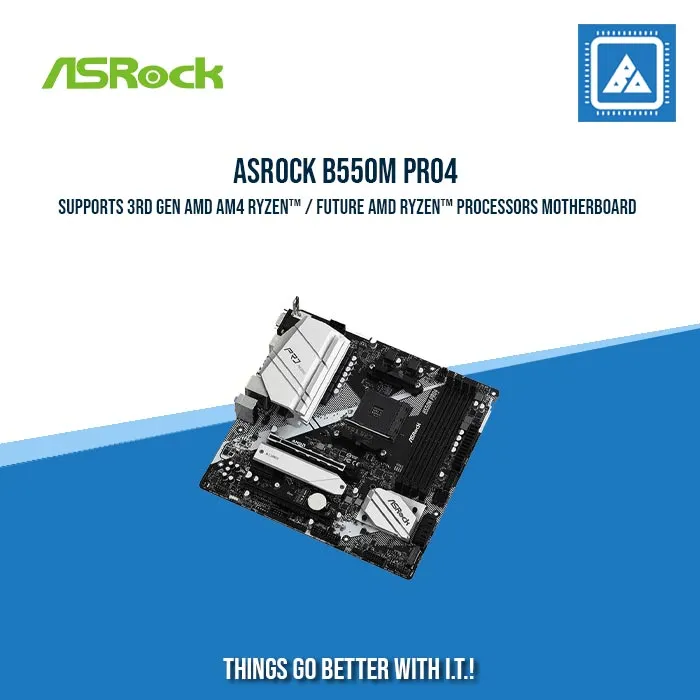

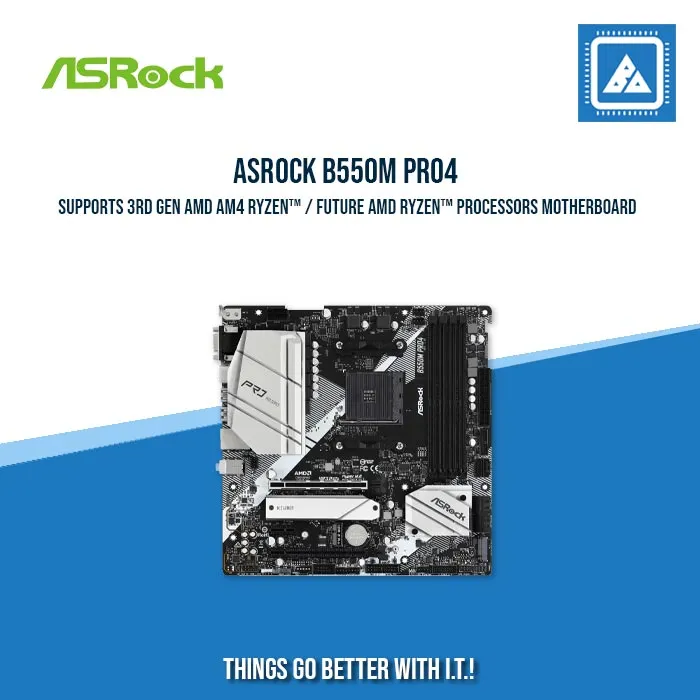

ASRock B550M Pro4 motherboard is a high-performance micro ATX motherboard designed for AMD Ryzen processors. With its AM4 CPU socket and AMD B550 chipset, it offers excellent compatibility with a wide range of Ryzen processors. This motherboard supports up to 128GB of DDR4 memory at impressive speeds, making it ideal for gamers and content creators. It boasts robust connectivity options, including USB 3.2 Gen2 ports and support for AMD Quad CrossFireX™, ensuring a seamless gaming experience. Additionally, the motherboard features Realtek ALC1200 audio, providing excellent sound quality for immersive audio experiences.
| Specifications | |
|---|---|
| CPU Socket | AM4 |
| Chipset | AMD B550 |
| Memory | |
| Memory Slots : 4 x DDR4 DIMM slots | |
| Memory Type : DDR4 | |
| Maximum Memory : Up to 128GB (depends on memory module type) | |
| Memory Speed : Supports DDR4 4733 (OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 MHz | |
| Storage | |
| SATA Ports : 6 x SATA3 6.0 Gb/s ports | |
| M.2 Slots : 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) | |
| RAID Support : RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Expansion Slots | |
| 2 x PCI Express 4.0 x16 slots (PCI_E1 and PCI_E3, both operate at x16 mode) | |
| 1 x PCI Express 3.0 x1 slot | |
| Graphics | |
| Graphics Output : HDMI 2.1, DisplayPort 1.4 | |
| Supports AMD Quad CrossFireX™ and CrossFireX™ | |
| Audio | |
| Audio Codec : Realtek ALC1200 | |
| Audio Channels : 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) | |
| Networking | |
| LAN Chipset : Realtek RTL8111H | |
| LAN Speed : 10/100/1000/2500 Mb/s | |
| Connectivity | |
| USB Ports : 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen1, 6 x USB 2.0 | |

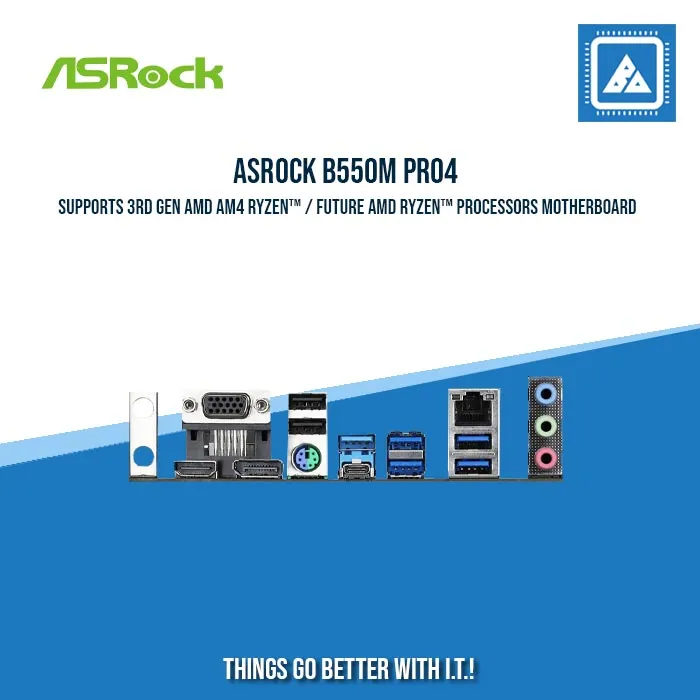

| Other Ports : 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort, 1 x RJ-45 LAN Port with LED, HD Audio Jacks | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | Micro ATX (9.6" x 9.6") |
| Operating System Support | Windows 10 64-bit |
| Features | |
| - Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update. | |
| - 7.1 CH HD audio with Realtek ALC1200 audio codec. | |
| - Polychrome SYNC RGB lighting and addressable RGB header for customization. | |
| - Steel Slot with new-gen PCI Express 4.0 for faster data transfer. | |
| - M.2 slots for fast NVMe SSDs. | |
| - HDMI and DisplayPort for integrated graphics. | |
| - USB 3.2 Gen2 Type-A and Type-C for high-speed data transfer. | |
| - Support for AMD CrossFireX™ and AMD Quad CrossFireX™. | |
| - Realtek Gigabit LAN for networking. |
