  Advanced Shuttle Chair – B Series

Specifically designed to facilitate the rehabilitation of bariatric patients, the attendant propelled ‘Shuttle B Series’ recliner effortlessly adjusts from chair to stretcher profile at the touch of a button. With a safe working load of 454kg and a range of other electrically powered profiling functions including ‘Seat Assist’, Trendelenburg and Reverse Trendelenburg, plus the unique ‘Sit to Stand’ poles, our Shuttle™ is an essential piece of equipment for any facility caring for non-ambulant patients of significant size. Ideal for use in ICU, Medical and Rehabilitation wards.



 Features

  • Ideal for lateral transfers from bed to the Shuttle™ and back again
  • Electric height adjustment
  • ‘One touch’ powered adjustment for the following patient support surface profiles –

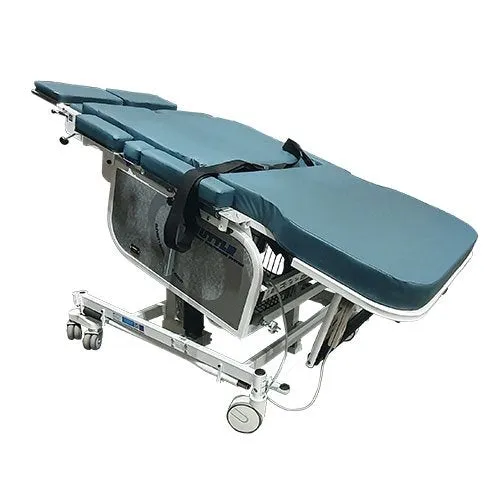

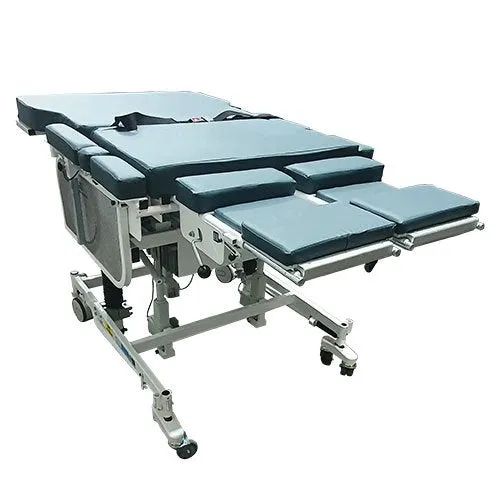

    • Stretcher

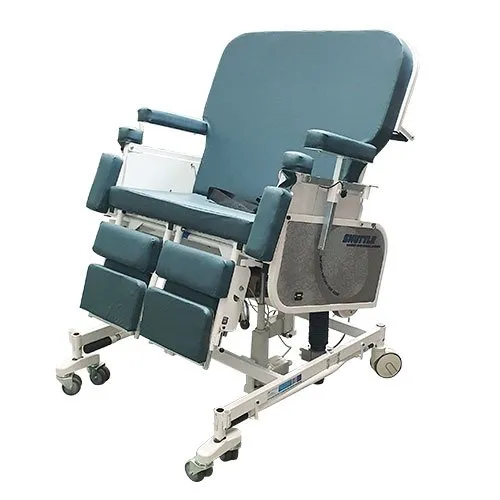

    • Chair upright
    • ‘Seat Assist’ mode (chair tilting forward)
    • Recliner
    • Trendelenburg
    • Reverse Trendelenburg
  • Comfortable seat/backrest/leg and arm rest cushions, upholstered in two way stretch pressure-relieving PU fabric, with HF welded seams, for improved infection control.
    Manually height adjustable arm rests
  • Manually adjustable leg rests (independently adjustable for right and left side)
  • Manually height adjustable fold down foot plates (independently adjustable for right and left side)
  • Central locking rear swivel castors (twin wheel design) with additional directional lock mode
  • Front mini swivel castors (twin wheel design) – dual set on each side
  • Removable IV pole – stored underneath chair when not required

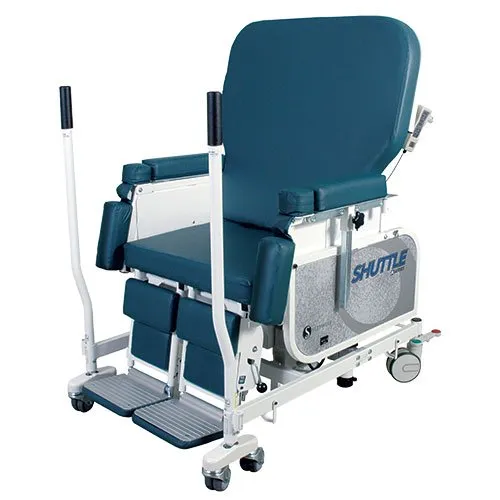

  • Removable ‘sit to stand’ ambulation poles for right and left sides – stored underneath chair when not required
  • Fitted with seat belt to help stabilise patient if necessary
  • Storage basket underneath (accessed from the rear)
  • O² Cylinder Holder mounted behind backrest
  • Push bar, located behind backrest, can also swing up into the ‘head board’ position when Shuttle™ in stretcher mode
  • Battery backup provides limited operation when not connected to facility’s power supply. Battery level gauge on one side of chair frame
  • Retractable power lead

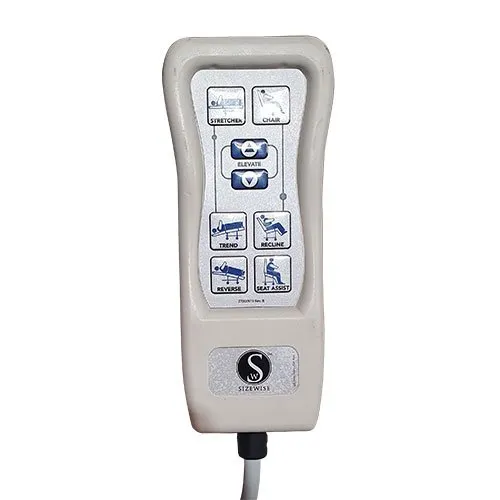

  • All powered functions operated from hand pendant
  • 455kg SWL


Width Between Armrests 79cm
Seat Depth 46cm
Overall Width 100cm
Overall Length Min 123cm
Max 195cm
Seat Height (in upright chair profile) Min 60cm
Max 80cm
Height of Patient Support Surface (in stretcher mode) Min 76cm
Max 96cm
Range of Tilt Min 15°
Max -15°
Product Weight 159kg
Safe Working Load 455kg

PRODUCT CODE PRODUCT NAME SWL
BAMD-ASCP
Advanced Shuttle Chair – B Series
455kg
